H-5-1/8-S-2-22,P-5-1/8-F-2-30,H-5-1/8-L-3-22,neuma机械阀

2015-03-28 15:45865

信息概况

价格：未填
型号：H-5-1/8-S-2-22,P-5-1/8-F-2-30,H-5-1/8-L-3-22
发货：3天内

发送询价

H-5-1/8-S-2-22,P-5-1/8-F-2-30,H-5-1/8-L-3-22,P-5-1/8-K-3-22,neuma机械阀

Technical Data.
5/2 Mechanical button, manually selection switch

Position	5/2 Way
Port size	G 1/8”
Effective area	12mm2 (Cv=0.67)
Nominal flow	670 Nl/min
Fluid	Compressed air
Pressure range	1.5~8bar(22~115psi)
Operating temperture	5~60°C (41~140°F)
Weight	0.10 kg

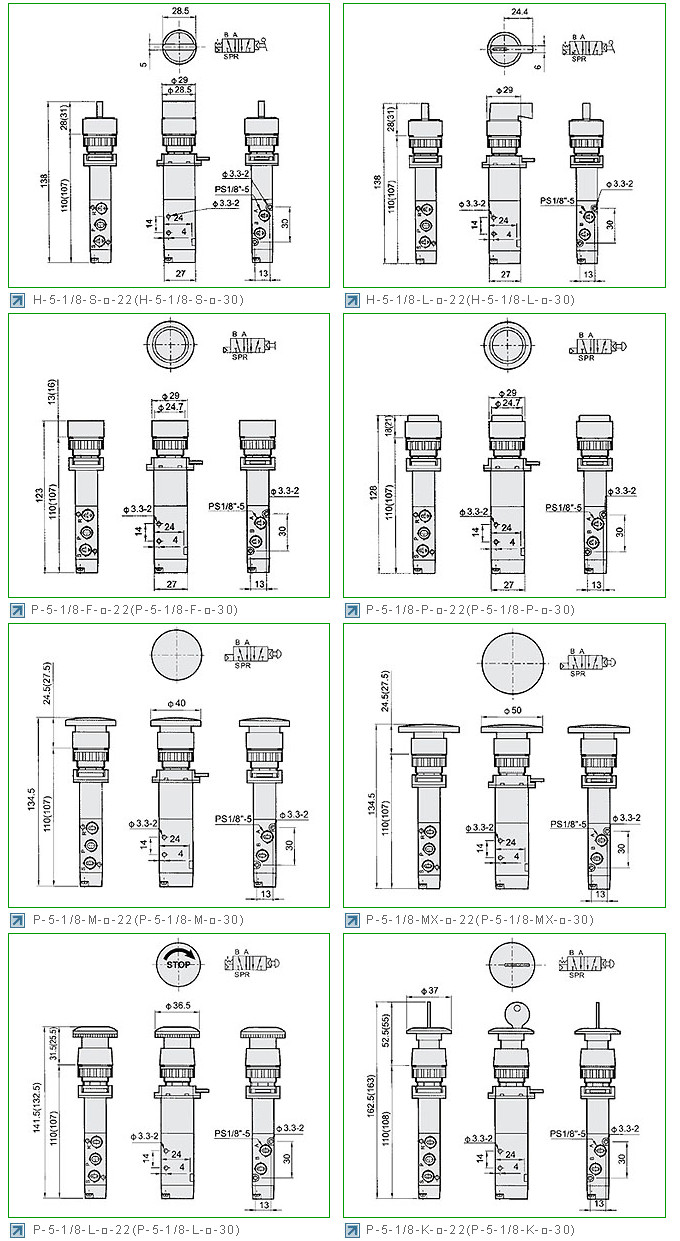

H-5-1/8-S-2-30,H-5-1/8-S-3-22,H-5-1/8-S-3-30,H-5-1/8-S-4-22,H-5-1/8-S-4-30,
H-5-1/8-L-2-22,H-5-1/8-L-2-30,H-5-1/8-L-3-30,H-5-1/8-L-4-22,H-5-1/8-L-4-30,
P-5-1/8-F-2-22,P-5-1/8-F-3-22,neuma，P-5-1/8-F-3-30,
P-5-1/8-F-4-22,P-5-1/8-F-4-30,P-5-1/8-F-6-22,P-5-1/8-F-6-30,
P-5-1/8-P-2-22,P-5-1/8-P-2-30,P-5-1/8-P-3-22,P-5-1/8-P-3-30,
P-5-1/8-P-4-22,P-5-1/8-P-4-30,P-5-1/8-P-6-22,P-5-1/8-P-6-30,
P-5-1/8-M-2-22,P-5-1/8-M-2-30,P-5-1/8-M-3-22,P-5-1/8-M-3-30,
P-5-1/8-M-4-22,P-5-1/8-M-4-30,P-5-1/8-M-6-22,P-5-1/8-M-6-30,
P-5-1/8-MX-2-22,P-5-1/8-MX-2-30,P-5-1/8-MX-3-22,P-5-1/8-MX-3-30,
P-5-1/8-MX-4-22,P-5-1/8-MX-4-30,P-5-1/8-MX-6-22,P-5-1/8-MX-6-30,
P-5-1/8-L-2-22,P-5-1/8-L-2-30,P-5-1/8-L-3-22,P-5-1/8-L-3-30,
P-5-1/8-L-4-22,P-5-1/8-L-4-30,P-5-1/8-L-6-22,P-5-1/8-L-6-30,
P-5-1/8-K-2-22,P-5-1/8-K-2-30,neuma，P-5-1/8-K-3-30,
P-5-1/8-K-4-22,P-5-1/8-K-4-30,P-5-1/8-K-6-22,P-5-1/8-K-6-30,
