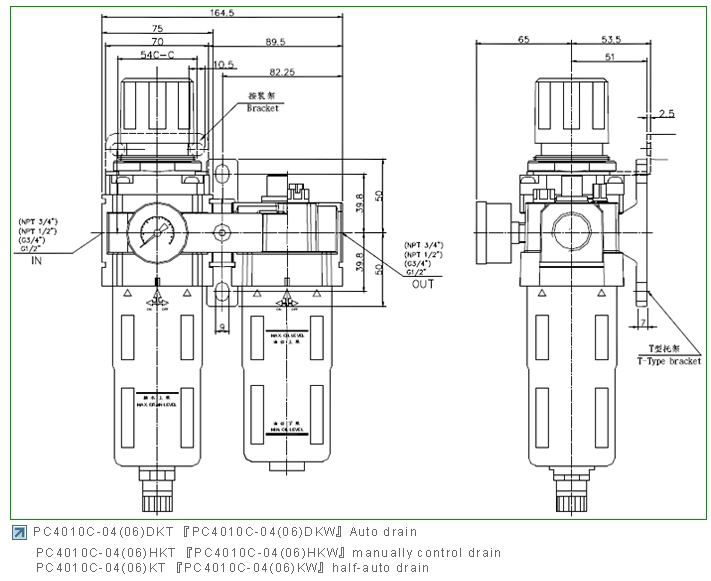

 PC4010C-04,PC4010C-06,neuma二点式三点组合

How To Order

How to order
PC4010C-04
PC4010C-06
Component Filter regulator PW4000C-04 PW4000C-06
Lubricator PL4000-04 PL4000-06
Port size
G 1/ 2”
G 3/ 4”
Max. supply pressure
15 kgf/cm2
Max. operating pressure
9.9 kgf/cm2
Regulating range
0.5~8.5 kgf/cm2
Port size for pressure gauge
G 1/4
Max. Flow rate
6200 NL/min
Ambient and media temperature -5~ 60 °C
Filter element Standard：5 μm　Option : 2,10 μm
Recommended oil ISO VG32
Bowl material
Polycarbonate
Weight
1.84 kgf

Accessories

How to order
Appellation
AD53
Float type auto drain (N.C)
K40210
1/4 PT Pressure gauge 0~10bar
B410I
 I-Type bracket
B410T
 T-Type bracket
B410-O
 O-Type spacer
Y42-04
 T-Type spacer 1/4 port size
W522
 Bracket
