排泥阀
首页 > 了解产品 > 阀门 流体控制 > 其他阀门 > 排泥阀
100S-10C,100S-25C,100S-40C,100S-10P,100S-25P,100S-40P,角式排泥阀
2015-01-17 17:01874
信息概况
  • 价格：未填
  • 型号：100S-10C,100S-25C,100S-40C,100S-10P,100S-25P,100S-40P
  • 发货：3天内
发送询价

100S-10C,100S-25C,100S-40C,100S-10P,100S-25P,100S-40P,角式排泥阀




★100S角式排泥阀主要零件
阀体阀盖：铸铁，铸钢、球墨铸铁、铸钢
阀瓣、弹簧：不锈钢
膜片：尼龙强化橡胶
结构形式：角式
★100S角式排泥阀技术参数
压力等级：1.0Mpa、1.6Mpa、2.5Mpa、4.0MPa
最高工作压力：0.2Mpa  ~0.6Mpa
密封实验压力：0.275~0.66Mpa
阀体式样压力：0.9Mpa
法兰压力等级：PN10或客户指定
操作压力范围：0.05~0.6Mpa
操作温度：0℃~80℃
寿命范围：15000次以上
★100S角式排泥阀主要零件




零件名称
阀体阀盖
阀瓣，弹簧
膜片
材质
铸铁，铸钢，球磨铸铁
不休钢
尼龙强化橡胶

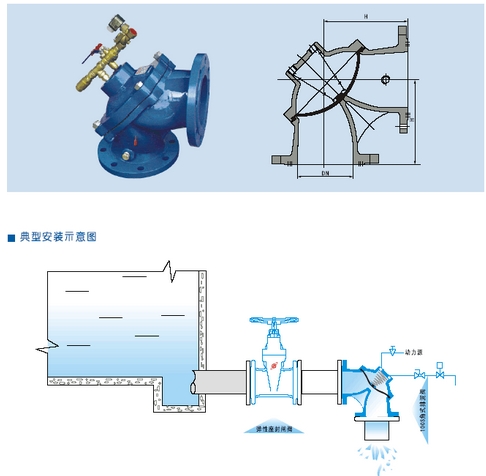

★100S角式排泥阀连接尺寸




DN
50
65
80
100
125
150
200
250
300
H
125
145
155
175
200
225
275
325
375




100S-10C-DN50,100S-25C-DN125,100S-40P-DN125,100S-16C-DN125,100S-10C-DN300,
100S-10C-DN150,100S-10C-DN200,100S-10C-DN250,100S-10C-DN80,100S-10C-DN100,
100S-25C-DN50,100S-25C-DN65,100S-25C-DN80,100S-25C-DN100,100S-10C-DN125,
100S-25C-DN150,100S-25C-DN200,100S-25C-DN300,100S-10C-DN65,100S-25C-DN250,
100S-40C-DN50,100S-40C-DN65,100S-40C-DN80,100S-40C-DN100,100S-40C-DN125,
100S-40C-DN150,100S-40C-DN200,100S-40C-DN250,100S-40C-DN300,
100S-16C-DN50,100S-16C-DN65,100S-16C-DN80,100S-16C-DN100,
100S-16C-DN150,100S-16C-DN200,100S-16C-DN250,100S-16C-DN300,
100S-10P-DN50,100S-25P-DN125,100S-16P-DN125,100S-10P-DN300,
100S-10P-DN150,100S-10P-DN200,100S-10P-DN250,100S-10P-DN80,100S-10P-DN100,
100S-25P-DN50,100S-25P-DN65,100S-25P-DN80,100S-25P-DN100,100S-10P-DN125,
100S-25P-DN150,100S-25P-DN200,100S-25P-DN300,100S-10P-DN65,100S-25P-DN250,
100S-40P-DN50,100S-40P-DN65,100S-40P-DN80,100S-40P-DN100,
100S-40P-DN150,100S-40P-DN200,100S-40P-DN250,100S-40P-DN300,
100S-16P-DN50,100S-16P-DN65,100S-16P-DN80,100S-16P-DN100,
