SMQ611F-16,SMQ611F-25,SMQ611F-40,SMQ621F-25,SMQ621F-40,SMQ621F-64,SMQ661F-16,气动三片式焊接球阀
一、产品[气动三片式球阀]的详细资料：
产品型号：SMQ661F
产品名称：气动三片式球阀
产品特点：气动三片式球阀,气动球阀,三片式球阀，公司生产的气动球阀,是在引进国外先进技术的基础上进行特殊设计，精心制造的产品。采用智能控制与定位，与电气阀门定位器配套，输入4-20mADC信号及0.4~0.7MPa气源即可控制运转，实现对压力、流量、温度、液位等参数的调节。它是以压缩空气为动力，阀杆带动阀芯在阀体内转动90°可以实现全开—全闭的动作。该产品按其密封性能分为金属密封与软密封。具有结构紧凑、体积精小、运行可靠、密封性好、维修容易、安装方便、适应性强等优点。特别适合于介质是粘稠、含颗粒、纤维性质的场合。可广泛应用于石油、化工、教学设备、轻工、高压设备、制药、造纸等工业自动控制系统中，作远距离集中控制或就地控制。

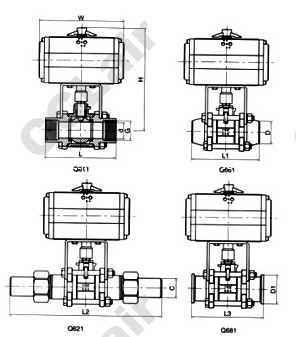

二、气动三片式球阀主要外形和连接尺寸单位（mm）：
|
SMQ611F-16,25,40,64
|
|
通径DN
|
d
|
G
|
L
|
H
|
W
|
|
mm
|
In
|
|
8
|
1/4″
|
8
|
G1/4″
|
65
|
140
|
104
|
|
10
|
3/8″
|
10
|
G3/8
|
65
|
140
|
104
|
|
15
|
1/2″
|
15
|
G1/2
|
72
|
150
|
140
|
|
20
|
3/4
|
18
|
G3/4″
|
85
|
155
|
140
|
|
25
|
1″
|
24
|
G1″
|
91
|
165
|
140
|
|
32
|
1 1/2″
|
30
|
G1 1/4″
|
110
|
180
|
164
|
|
40
|
1 1/2″
|
38
|
G1 1/2″
|
122
|
190
|
164
|
|
50
|
2″
|
48
|
G2″
|
145
|
210
|
190
|
三、气动三片式球阀主要外形和连接尺寸单位（mm）：
|
SMQ621F-16,25,40,64
|
|
通径DN
|
d
|
G
|
L2
|
H
|
W
|
|
mm
|
In
|
|
8
|
1/4″
|
8
|
14
|
120
|
140
|
104
|
|
10
|
3/8″
|
10
|
18
|
130
|
140
|
104
|
|
15
|
1/2″
|
15
|
22
|
140
|
150
|
140
|
|
20
|
3/4
|
18
|
28
|
160
|
155
|
140
|
|
25
|
1″
|
24
|
34
|
180
|
165
|
140
|
|
32
|
1 1/2″
|
30
|
42
|
200
|
180
|
164
|
|
40
|
1 1/2″
|
38
|
48
|
218
|
190
|
164
|
|
50
|
2″
|
48
|
60
|
235
|
210
|
190
|
四、气动三片式球阀主要外形和连接尺寸单位（mm）：
|
SMQ661F-16,25,40,64
|
|
通径DN
|
d
|
G
|
L1
|
H
|
W
|
|
mm
|
In
|
|
8
|
1/4″
|
8
|
14.3
|
65
|
140
|
104
|
|
10
|
3/8″
|
10
|
18
|
65
|
140
|
104
|
|
15
|
1/2″
|
15
|
22
|
72
|
150
|
140
|
|
20
|
3/4
|
18
|
28
|
85
|
155
|
140
|
|
25
|
1″
|
24
|
34.5
|
91
|
165
|
140
|
|
32
|
1 1/2″
|
30
|
43.5
|
110
|
180
|
164
|
|
40
|
1 1/2″
|
38
|
49.5
|
122
|
190
|
164
|
|
50
|
2″
|
48
|
62
|
145
|
210
|
190
|
五、气动三片式球阀主要外形和连接尺寸单位（mm）：
|
SMQ681F-16
|
|
通径DN
|
d
|
G
|
L3
|
H
|
W
|
|
mm
|
In
|
|
15
|
1/2″
|
15
|
34
|
108
|
150
|
140
|
|
20
|
3/4
|
18
|
50.5
|
118
|
155
|
140
|
|
25
|
1″
|
24
|
50.5
|
127
|
165
|
140
|
|
32
|
1 1/2″
|
30
|
50.5
|
146
|
180
|
164
|
|
40
|
1 1/2″
|
38
|
50.5
|
159
|
190
|
164
|
|
50
|
2″
|
48
|
64
|
191
|
210
|
190
|
