SMQ671F-16-DN10,SMQ671F-16-DN15,SMQ671F-16P-DN20,SMQ671F-16P-DN25,气动对夹球阀

一、产品[气动超短型球阀]的详细资料：

产品型号：SMQ671F

产品名称：气动超短型球阀

产品特点：气动超短型球阀,气动球阀,超短型球阀

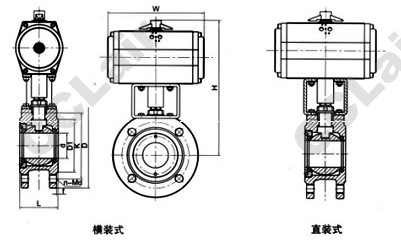

二、气动超短型球阀主要外形和连接尺寸：

SMQ671F-16
通径DN		d	L	D	K	D1	n-Md	f	H	W
mm	in	d	L	D	K	D1	n-Md	f	H	W
10	3/8″	10	32	85	60	38	4-M12	2	165	104
15	1/2″	14	35	90	65	46	4-M12	2	180	140
20	3/4″	19	38	100	75	56	4-M12	2	185	140
25	1″	24	42	110	85	65	4-M12	2	190	140
32	1 1/4″	29	50	130	100	76	4-M16	3	205	164
40	1 1/2″	38	60	145	110	84	4-M16	3	220	164
50	2″	48	70	160	125	99	4-M16	3	255	190
65	2 1/2″	64	95	180	145	118	4-M16	3	280	210
80	3″	76	118	195	160	132	8-M16	3	330	247
100	4″	95	140	215	180	156	8-M16	3	370	276
125	5″	118	195	245	210	184	8-M16	3	460	348
150	6″	150	260	280	240	211	8-M20	3	540	378
200	8″	200	350	335	295	266	12-M20	3	670	432

三、气动超短型球阀主要外形和连接尺寸：

SMQ671F-16P
通径DN		d	L	D	K	D1	n-Md	f	H	W
mm	in	d	L	D	K	D1	n-Md	f	H	W
10	3/8″	10	32	85	60	38	4-M12	2	165	104
15	1/2″	14	35	90	65	46	4-M12	2	180	140
20	3/4″	19	38	100	75	56	4-M12	2	185	140
25	1″	24	42	110	85	65	4-M12	2	190	140
32	1 1/4″	29	50	130	100	76	4-M16	3	205	164
40	1 1/2″	38	60	145	110	84	4-M16	3	220	164
50	2″	48	70	160	125	99	4-M16	3	255	190
65	2 1/2″	64	95	180	145	118	8-M16	3	280	210
80	3″	76	118	195	160	132	8-M16	3	330	247
100	4″	95	140	215	180	156	8-M20	3	370	276
125	5″	118	195	245	210	184	8-M24	3	460	348
150	6″	150	260	280	240	211	8-M24	3	540	378
200	8″	200	350	335	295	274	8-M24	3	670	432

结构长度：Q/OLF002-88
法兰标准：JB亦可按GB9113、ANSI B16.5 \JIS B2212
