D71FS-6-DN40,D71FS-6-DN50,D71FS-6-DN65,D71FS-6-DN80,D71FS-6-DN100,D71FS-6-DN125,衬氟手动蝶阀
产品名称：D71FS衬氟手动蝶阀
产品特点：对夹连接手动蝶阀,中线连接手动蝶阀,手动蝶阀
衬氟手动气动的详细资料：衬氟手动蝶阀,中线连接手动蝶阀,手动蝶阀

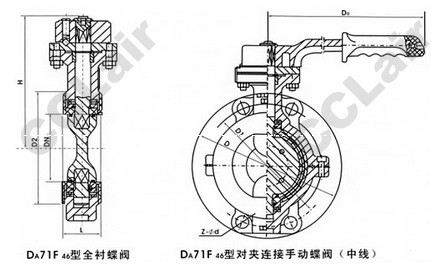

三、D71FS衬氟手动蝶阀主要连接尺寸及重量：
|
公称通径
|
标准值
|
参考值
|
|
DN（mm）
|
NPS（inch）
|
L
|
D
|
D1
|
D2
|
F
|
B
|
Z-Φd
|
Do
|
H
|
W（kg）
|
|
PN0.6（MPa）
|
|
40
|
11/2
|
33
|
130
|
100
|
80
|
3
|
16
|
4-Φ14
|
160
|
140
|
2.5
|
|
50
|
2
|
43
|
140
|
110
|
90
|
3
|
16
|
4-Φ14
|
200
|
145
|
3.5
|
|
65
|
21/2
|
46
|
160
|
130
|
110
|
3
|
16
|
4-Φ14
|
250
|
155
|
4.5
|
|
80
|
3
|
46
|
182
|
150
|
125
|
3
|
18
|
4-Φ18
|
250
|
165
|
6
|
|
100
|
4
|
52
|
205
|
170
|
145
|
3
|
18
|
4-Φ18
|
250
|
180
|
7.5
|
|
125
|
5
|
56
|
235
|
200
|
175
|
3
|
20
|
8-Φ18
|
300
|
203
|
11
|
|
150
|
6
|
56
|
260
|
225
|
200
|
3
|
20
|
8-Φ18
|
300
|
225
|
16
|
|
200
|
8
|
60
|
315
|
280
|
255
|
3
|
22
|
8-Φ18
|
200*
|
275
|
48
|
|
250
|
10
|
68
|
370
|
335
|
310
|
3
|
24
|
12-Φ18
|
200*
|
315
|
60
|
|
300
|
12
|
78
|
435
|
395
|
362
|
4
|
24
|
12-Φ23
|
240*
|
348
|
75
|
|
350
|
14
|
78
|
485
|
445
|
412
|
4
|
26
|
12-Φ23
|
240*
|
415
|
82
|
|
400
|
16
|
102
|
535
|
475
|
462
|
4
|
28
|
16-Φ23
|
280*
|
460
|
123
|
|
450
|
18
|
114
|
590
|
550
|
518
|
4
|
28
|
16-Φ23
|
280*
|
500
|
150
|
|
500
|
20
|
127
|
640
|
600
|
568
|
4
|
30
|
16-Φ23
|
320*
|
530
|
180
|
|
600
|
24
|
154
|
755
|
705
|
670
|
5
|
30
|
20-Φ25
|
320*
|
610
|
225
|
|
700
|
28
|
165
|
860
|
810
|
775
|
5
|
32
|
24-Φ25
|
360*
|
675
|
315
|
|
800
|
32
|
190
|
975
|
920
|
880
|
5
|
34
|
24-Φ30
|
360*
|
805
|
385
|
|
900
|
36
|
203
|
1075
|
1020
|
980
|
5
|
36
|
24-Φ30
|
380*
|
995
|
420
|
|
1000
|
40
|
216
|
1175
|
1120
|
1080
|
5
|
36
|
28-Φ30
|
400*
|
1170
|
620
|
|
1200
|
48
|
254
|
1400
|
1340
|
1295
|
5
|
40
|
32-Φ34
|
400*
|
1295
|
788
|
