HH46X-10C,HH46X-16C,HDH48X-16C,HDH48X-25C,HH49X-10C,HH49X-16C,HH49X-25C,阻缓闭消声止回阀
产品名称：微阻缓闭消声止回阀
产品特点：本厂生产的HH4 6x、HDH4 8x、HH49X消声缓闭止回阀系列产品可用在清水、污水、海水等介质的排水管道上，既能防止介质的倒流叉能有效地限制破坏性水锤保证管线的使用安全。它具有结构新颖、体积小、重量轻、流体阻力小、密封可靠、启闭平稳、耐磨损、使用寿命长油压、缓闭不受介质影响+有较好节能效果等特点。
二、主要零件材料：
|
零件名称
|
阀体
|
阀瓣
|
阀杆、油
缸、活塞
|
弹 簧
|
阀 座
|
|
材 料
|
铸铁、铸钢
|
碳钢
|
不锈钢
|
不锈钢
|
丁腈橡胶
|
三、主要技术参数：
|
型号
|
公称
压力
PN(MPa)
|
强度试验压力
|
密封
压力
(MPa)
|
适用
温度
(℃)
|
适用
介质
|
缓闭
时间
|
|
HH46X
HDH48X
HH49X
|
1.0
|
1.5
|
1.1
|
≤80
|
清水
污水
海水
|
≤60秒
|
|
1.6
|
2.4
|
1.76
|
|
2.5
|
3.75
|
2.75
|

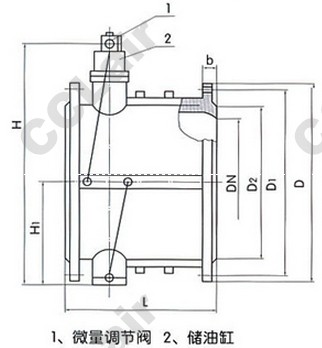

四、主要外形尺寸(法兰连接尺寸：按JB/T79—94)：
|
公称压力
|
公称通径
|
尺 寸fmm)
|
|
L
|
H
|
H1
|
|
1.0
1.6
2.5
|
40
|
140
|
200
|
88
|
|
50
|
150
|
215
|
98
|
|
65
|
170
|
225
|
108
|
|
80
|
180
|
235
|
118
|
|
100
|
190
|
280
|
130
|
|
125
|
200
|
290
|
148
|
|
150
|
210
|
310
|
172
|
|
200
|
230
|
350
|
210
|
|
250
|
250
|
415
|
240
|
|
300
|
270
|
450
|
264
|
|
公称压力
|
公称通径
|
尺 寸(mm)
|
|
L
|
H
|
H1
|
|
1.0
1.6
2.5
|
350
|
290
|
480
|
297
|
|
400
|
310
|
550
|
324
|
|
450
|
330
|
585
|
351
|
|
500
|
350
|
640
|
379
|
|
600
|
390
|
720
|
434
|
|
700
|
430
|
780
|
491
|
|
800
|
470
|
840
|
549
|
|
900
|
510
|
990
|
600
|
|
1000
|
550
|
1050
|
655
|
|
1200
|
630
|
1210
|
770
|
