柱塞阀
首页 > 了解产品 > 阀门 流体控制 > 水力控制阀 > 柱塞阀
UJ11-UJ11SM-15C,UJ11-UJ11SM-25C,UJ11-UJ11SM-25P,UJ11-UJ11SM-40P,UJ11-UJ11SM-15R,内螺纹柱塞阀
2014-12-16 08:41914
信息概况
  • 价格：未填
  • 型号：UJ11-UJ11SM-15C,UJ11-UJ11SM-25C,UJ11-UJ11SM-25P,UJ11-UJ11SM-40P,UJ11-UJ11SM-15R,内螺纹柱塞阀
  • 发货：3天内
发送询价


UJ11-UJ11SM-15C,UJ11-UJ11SM-25C,UJ11-UJ11SM-25P,UJ11-UJ11SM-40P,UJ11-UJ11SM-15R,内螺纹柱塞阀

产品名称：内螺纹连接柱塞阀

产品特点：内螺纹连接分非金属密封，金属密封两类，此外，外螺纹连接柱塞阀其外形分为Z字形和腰鼓形两大类，其内部结构完全相同，用途一样，主要用在冶金、电业、化工、炼油、食品等行业。压力为16-25kgf/cm2以内，温度为250℃以下的水、蒸汽、油类等小口径管道上作开启、关闭调节流量用。

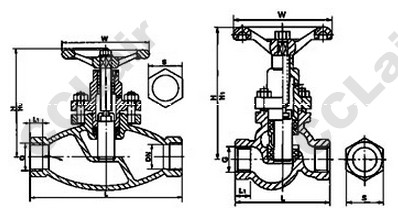

二、内螺纹柱塞阀主要连接、结构尺寸：

DN(mm)
尺寸（mm）

UJ11-UJ11SM-15、25、40C、P、R

15

20

25

32

40

50

L

90

100

120

140

170

200

H

120

140

165

175

195

213

H1

148

175

205

215

246

268

W

80

100

120

140

160

180

G

1/2''

3/4”

1”

11/4”

11/2”

2”

L1

14

16

18

20

22

24

S

32

36

46

55

65

80

重量（千克）

1．5

2.5

3.5

5.5

8.5

12
UJ11-UJ11SM-15C-DN15,UJ11-UJ11SM-25C-DN15,UJ11-UJ11SM-40C-DN15,UJ11-UJ11SM-15P-DN15,
UJ11-UJ11SM-25P-DN15,UJ11-UJ11SM-40P-DN15,UJ11-UJ11SM-15R-DN15,UJ11-UJ11SM-25R-DN15,UJ11-UJ11SM-40R-DN15,
UJ11-UJ11SM-15C-DN20,UJ11-UJ11SM-25C-DN20,UJ11-UJ11SM-40C-DN20,UJ11-UJ11SM-15P-DN20,
UJ11-UJ11SM-25P-DN20,UJ11-UJ11SM-40P-DN20,UJ11-UJ11SM-15R-DN20,UJ11-UJ11SM-25R-DN20,UJ11-UJ11SM-40R-DN20,
UJ11-UJ11SM-15C-DN25,UJ11-UJ11SM-25C-DN25,UJ11-UJ11SM-40C-DN25,UJ11-UJ11SM-15P-DN25,
UJ11-UJ11SM-25P-DN25,UJ11-UJ11SM-40P-DN25,UJ11-UJ11SM-15R-DN25,UJ11-UJ11SM-25R-DN25,UJ11-UJ11SM-40R-DN25,
UJ11-UJ11SM-15C-DN32,UJ11-UJ11SM-25C-DN32,CCLAIR,UJ11-UJ11SM-40C-DN32,UJ11-UJ11SM-15P-DN32,
UJ11-UJ11SM-25P-DN32,UJ11-UJ11SM-40P-DN32,UJ11-UJ11SM-15R-DN32,UJ11-UJ11SM-25R-DN32,UJ11-UJ11SM-40R-DN32,
UJ11-UJ11SM-15C-DN40,UJ11-UJ11SM-25C-DN40,UJ11-UJ11SM-40C-DN40,UJ11-UJ11SM-15P-DN40,
UJ11-UJ11SM-25P-DN40,UJ11-UJ11SM-40P-DN40,UJ11-UJ11SM-15R-DN40,UJ11-UJ11SM-25R-DN40,UJ11-UJ11SM-40R-DN40,
UJ11-UJ11SM-15C-DN50,UJ11-UJ11SM-25C-DN50,UJ11-UJ11SM-40C-DN50,UJ11-UJ11SM-15P-DN50,
UJ11-UJ11SM-25P-DN50,UJ11-UJ11SM-40P-DN50,UJ11-UJ11SM-15R-DN50,UJ11-UJ11SM-25R-DN50,UJ11-UJ11SM-40R-DN50,
