TJ40H-10,TJ40H-16,TJ40H-16C,TS40H-16,TS40H-16C,TJ40H-25,TS40H-25,TJl0H-10,TJlOH-16C,TJl0H-25,手动调节阀

产品型号：TJH型

产品名称：手动调节阀、自锁手动调节阀

产品特点：公司生产的手动调节阀及自销手动调节阀主要用于城市集中供热．循环水工程热电厂管网和制冷空调等工程中，具有截止、节流和调节流量的作用可取代节流孔板，是一种可变孔径的节流装置，介质温度：≤425℃。 手动调节阀,自锁手动调节阀,调节阀。

二、主要零件材料：

零件材料

阀体、阀盖、填料压盖

阀杆、阀瓣、密封圈

指示盘、阀杆螺母、螺帽套

材料

灰铸铁、铸钢、不锈钢

不锈钢

黄铜

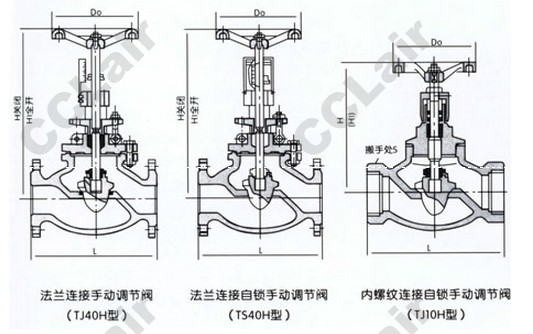

三、手动调节阀主要外型尺寸(法兰连接尺寸：PNl0按GB4216标准，PNl6、PN25按JB／T97—94标准)：




尺 寸(mm)

型号

DN

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

400

450

500

600

TJ40H-10
TJ40H-10

L

-

-

-

-

-

-

-

-

-

-

-

-

622

698

787

914

978

978

1295

H

-

-

-

-

-

-

-

-

-

-

-

-

914

914

968

968

100

440

790

H1

-

-

-

-

-

-

-

-

-

-

-

-

1074

1074

1168

1168

1350

1440

1790

D0

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

TJ40H-16
TJ40H-16C
TS40H-16
S40H-16C
TJ40H-25
TS40H-25

L

130

150

160

180

200

230

290

310

350

400

480

495

-

-

-

-

-

-

-

H

160

160

182

192

250

264

380

413

466

540

623

687

-

-

-

-

-

-

-

H1

172

172

195

210

273

290

426

468

530

613

698

777

-

-

-

-

-

-

-




Do




65




65




80




80




120




120




200




200




240




260




360




400

-

-

-

-

-

-

-

TJl0H-10
TJlOH-16C
TJl0H-25

L

90

100

120

140

170

200

-

-

-

-

-

-

-

-

-

-

-

-

-

H

150

160

182

192

250

264

-

-

-

-

-

-

-

-

-

-

-

-

-

H1

160

170

197

207

270

284

-

-

-

-

-

-

-

-

-

-

-

-

-

Do

80

80

80

90

100

120
