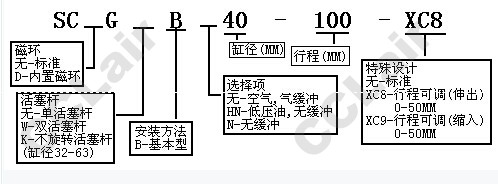

SCGB32,SCGB40,SCGB50,SCGB63,SCGB80,SCGB100,SCGB100-200,SCGB63-150,SCGB40-500,Sanwo标准气缸
| 缸径（mm） |
32 |
40 |
50 |
63 |
80 |
100 |
| 工作介质 |
经过滤的压缩空气 |
| 动作型式 |
双动 |
| 耐压试验压力 |
1.5Mpa（15kgf/cm2) |
| 最高使用压力 |
1.0Mpa(10kgf/cm2) |
| 最低工作压力 |
0.1Mpa（1kgf/cm2) |
| 缓冲 |
气缓冲 |
| 环境温度 |
(-10℃～60℃) |
| 使用速度 |
50～500mm/s |
| 行程误差(mm) |
0～250:0～+1.0,251～1000:0～+1.5 |
| 1001～1500:0～2.0 |
| 使用寿命 |
不低于3000KM |
| 润滑 |
不需要 |
| 接管口径 |
(1/8) |
(1/4) |
(3/8) |
(1/2) |
行程/磁性开关
| 缸径 |
标准行程 |
缓冲行程 |
磁性开关 |
固定码 |
| (mm) |
（mm) |
(mm) |
| 32 |
25，50，75
100,125,150,175
200,250,300,400,500 |
18.8 |
D-A54 |
DXT30 |
| 40 |
18.8 |
工作电压 |
| 50 |
21.3 |
DC24V |
| 63 |
21.3 |
AC110V/220V |
| 80 |
30.3 |
工作电流 |
DXT35 |
| 100 |
29.3 |
5-50/25/12.5mA |
使用注意事项：
1、使用的电压及电流避免超负荷。
2、严禁磁性开关直接与电源接通，必须同负载串联使用。
3、严禁有其它强磁体靠近磁性开关，如有应屏蔽。
