JA7V20LV1LPF00,JA7V107LV1LPF00,JA7V40DR5.1LPF00,JA7V78RV1RPF00,JA7V250LV1LZF00,JA7V355DR1LZF00,斜轴式变量_斜轴式柱塞泵_柱塞泵及泵组_油泵齿轮泵组合泵_了解产品

斜轴式柱塞泵

JA7V20LV1LPF00,JA7V107LV1LPF00,JA7V40DR5.1LPF00,JA7V78RV1RPF00,JA7V250LV1LZF00,JA7V355DR1LZF00,斜轴式变量

2014-05-30 17:12840

信息概况

价格：未填
型号：JA7V20LV1LPF00,JA7V107LV1LPF00,JA7V40DR5.1LPF00,JA7V78RV1RPF00,JA7V250LV1LZF00,JA7V355DR1LZF00,斜轴式变量
发货：3天内

JA7V20LV1LPF00,JA7V107LV1LPF00,JA7V40DR5.1LPF00,JA7V78RV1RPF00,JA7V250LV1LZF00,JA7V355DR1LZF00,斜轴式变量泵

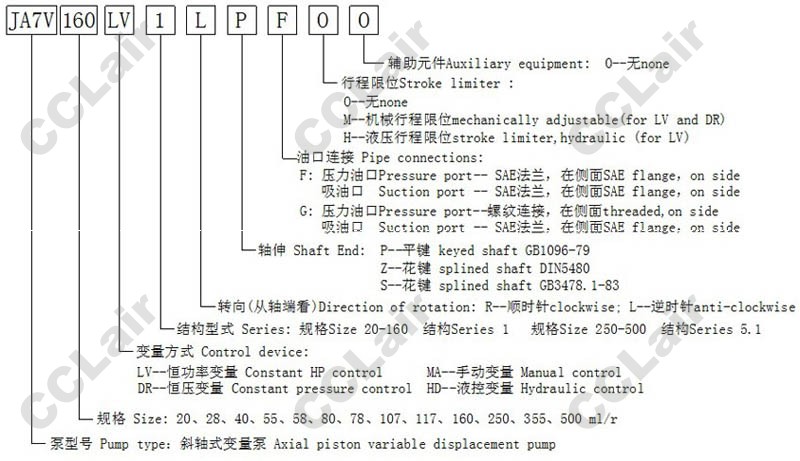

型号说明:

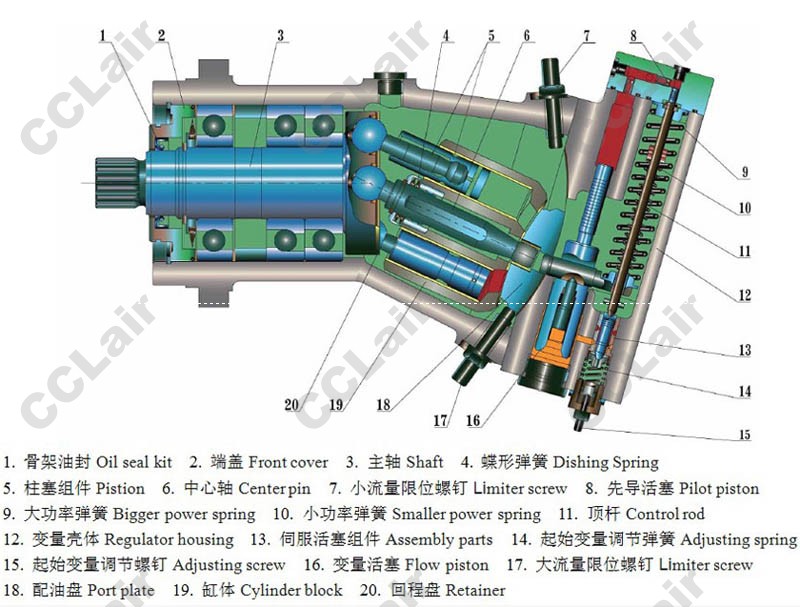

结构剖视:

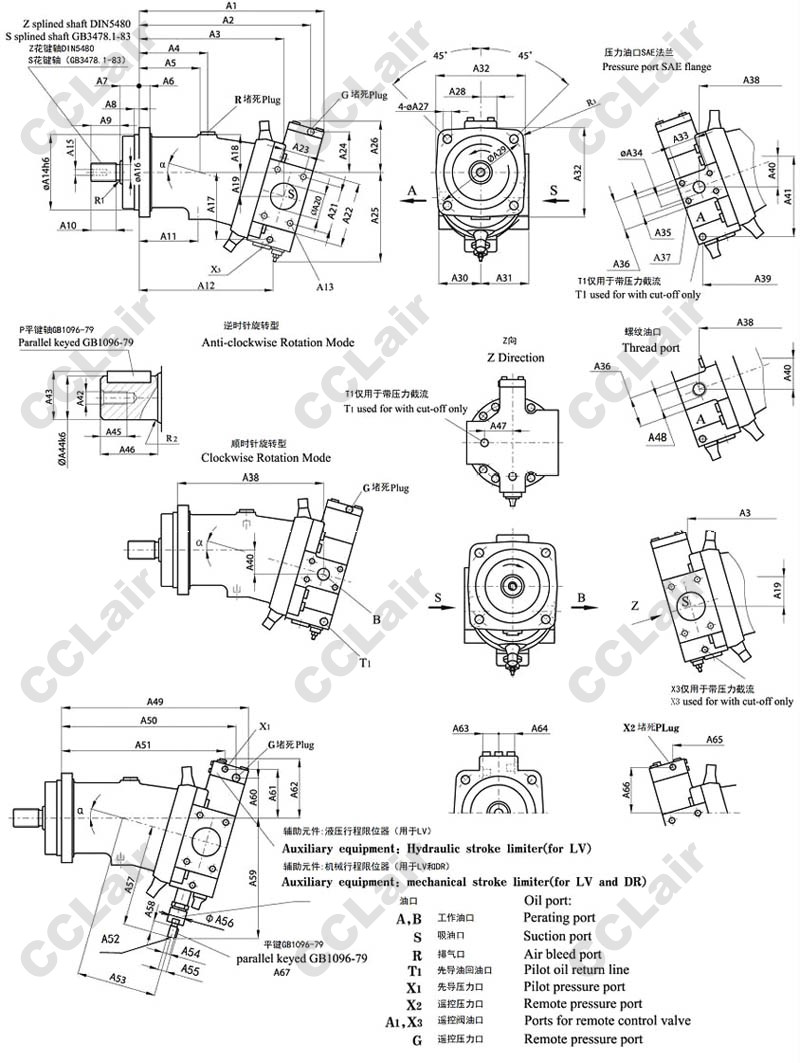

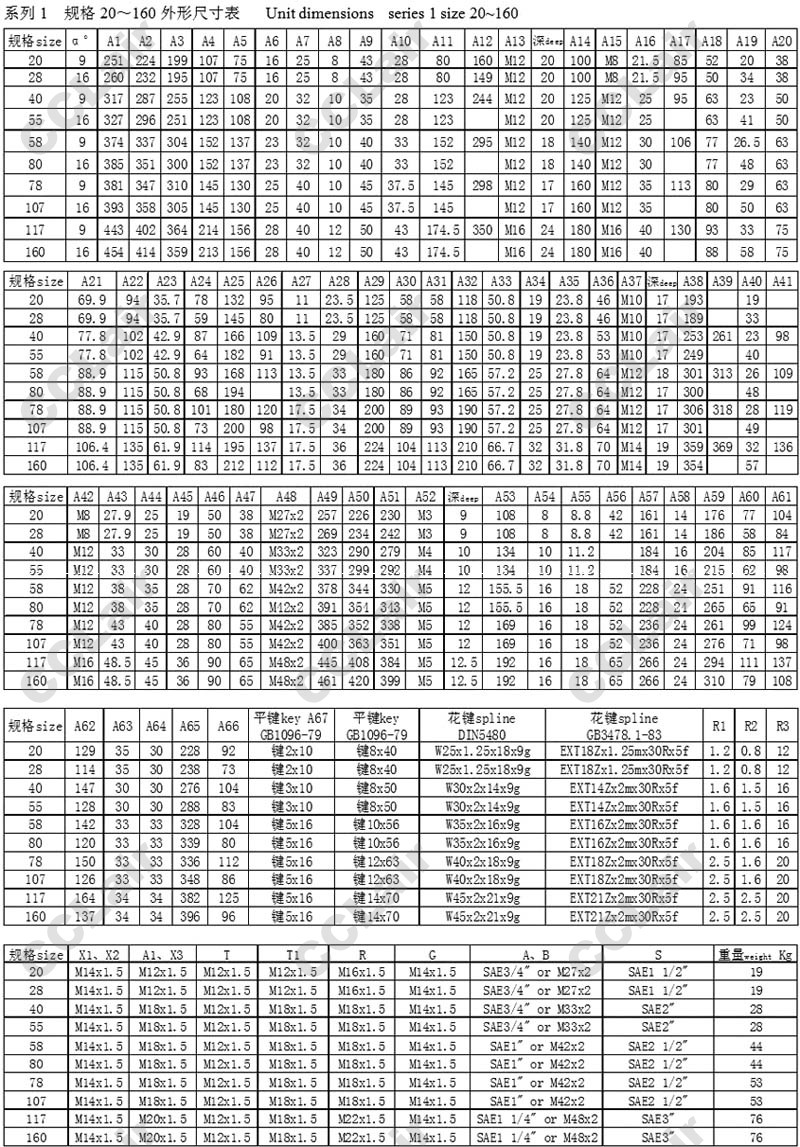

外形尺寸:

JA7V28LV1LPF00,JA7V40LV1LPF00,JA7V55LV1LPF00,JA7V258LV1LPF00,JA7V80LV1LPF00,

JA7V78LV1LPF00,JA7V117LV1LPF00,无锡昌林，JA7V160LV1LPF00,JA7V250LV1LPF00,JA7V355LV1LPF00,

JA7V500LV1LPF00,

JA7V20DR1LPF00,JA7V28DR1LPF00,JA7V40DR1LPF00,JA7V55DR1LPF00,JA7V258DR1LPF00,JA7V80DR1LPF00,

JA7V78DR1LPF00,JA7V107DR1LPF00,JA7V117DR1LPF00,JA7V160DR1LPF00,JA7V250DR1LPF00,JA7V355DR1LPF00,

JA7V500DR1LPF00,

JA7V20LV5.1LPF00,JA7V28LV5.1LPF00,JA7V40LV5.1LPF00,JA7V55LV5.1LPF00,JA7V258LV5.1LPF00,JA7V80LV5.1LPF00,

JA7V78LV5.1LPF00,JA7V107LV5.1LPF00,JA7V117LV5.1LPF00,JA7V160LV5.1LPF00,JA7V250LV5.1LPF00,JA7V355LV5.1LPF00,

JA7V500LV5.1LPF00,

JA7V20DR5.1LPF00,JA7V28DR5.1LPF00,JA7V55DR5.1LPF00,JA7V258DR5.1LPF00,JA7V80DR5.1LPF00,

JA7V78DR5.1LPF00,JA7V107DR5.1LPF00,JA7V117DR5.1LPF00,JA7V160DR5.1LPF00,JA7V250DR5.1LPF00,JA7V355DR5.1LPF00,

JA7V500DR5.1LPF00,

JA7V20RV1RPF00,JA7V28RV1RPF00,JA7V40RV1RPF00,JA7V55RV1RPF00,JA7V258RV1RPF00,JA7V80RV1RPF00,

JA7V107RV1RPF00,JA7V117RV1RPF00,无锡昌林，JA7V160RV1RPF00,JA7V250RV1RPF00,JA7V355RV1RPF00,

JA7V500RV1RPF00,

JA7V20DR1RPF00,JA7V28DR1RPF00,JA7V40DR1RPF00,JA7V55DR1RPF00,JA7V258DR1RPF00,JA7V80DR1RPF00,

JA7V78DR1RPF00,JA7V107DR1RPF00,JA7V117DR1RPF00,JA7V160DR1RPF00,JA7V250DR1RPF00,JA7V355DR1RPF00,

JA7V500DR1RPF00,

JA7V20RV5.1RPF00,JA7V28RV5.1RPF00,JA7V40RV5.1RPF00,JA7V55RV5.1RPF00,JA7V258RV5.1RPF00,JA7V80RV5.1RPF00,

JA7V78RV5.1RPF00,JA7V107RV5.1RPF00,JA7V117RV5.1RPF00,JA7V160RV5.1RPF00,JA7V250RV5.1RPF00,JA7V355RV5.1RPF00,

JA7V500RV5.1RPF00,

JA7V20DR5.1RPF00,JA7V28DR5.1RPF00,JA7V40DR5.1RPF00,JA7V55DR5.1RPF00,JA7V258DR5.1RPF00,JA7V80DR5.1RPF00,

JA7V78DR5.1RPF00,JA7V107DR5.1RPF00,JA7V117DR5.1RPF00,JA7V160DR5.1RPF00,JA7V250DR5.1RPF00,JA7V355DR5.1RPF00,

JA7V500DR5.1RPF00,

JA7V20LV1LZF00,JA7V28LV1LZF00,JA7V40LV1LZF00,JA7V55LV1LZF00,JA7V258LV1LZF00,JA7V80LV1LZF00,

JA7V78LV1LZF00,JA7V107LV1LZF00,无锡昌林，JA7V117LV1LZF00,JA7V160LV1LZF00,JA7V355LV1LZF00,

JA7V500LV1LZF00,

JA7V20DR1LZF00,JA7V28DR1LZF00,JA7V40DR1LZF00,JA7V55DR1LZF00,JA7V258DR1LZF00,JA7V80DR1LZF00,

JA7V78DR1LZF00,JA7V107DR1LZF00,JA7V117DR1LZF00,JA7V160DR1LZF00,JA7V250DR1LZF00,

JA7V500DR1LZF00,
