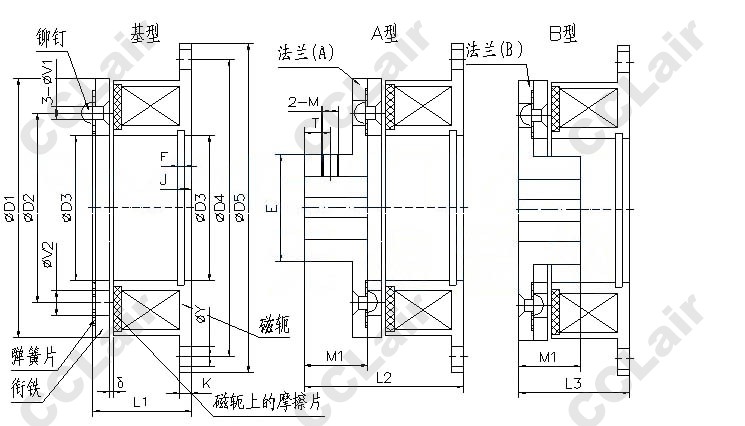

DZD5 基型
DZD5-5,DZD5-10,DZD5-20,DZD5-40,DZD5-50,DZD5-80,DZD5-100,DZD5-160,
DZD5-220,DZD5-320,DZD5-480,DZD5-1000,干式单片电磁制动器
DZD5 B型
DZD5-160B,DZD5-220B,DZD5-320B,DZD5-480B,DZD5-1000B,DZD5-5B,DZD5-10B,
DZD5-20B,DZD5-40B,DZD5-50B,DZD5-80B,DZD5-100B
DZD5 A型
DZD5-5A,DZD5-10A,DZD5-20A,DZD5-40A,DZD5-50A,DZD5-80A,
DZD5-100A,DZD5-160A,DZD5-220A,DZD5-320A,DZD5-480A,DZD5-1000A,
特别提醒：
1) 电磁制动器不得碰撞、坠落或使猛力安装，否则会导致变形而影响使用；
2) 必须清除摩擦面上的油脂物，可以用丙酮、酒精等清除；
3) 绝不允许用力拉拽、弯折引出线；

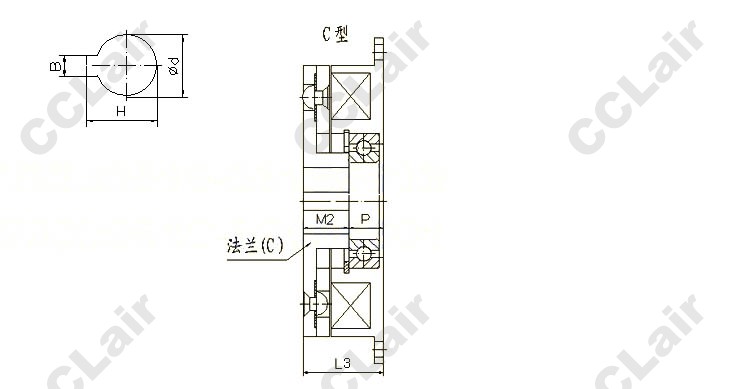

4) 安装时不仅要保证磁轭安装面与轴的垂直度，法兰与轴的配*用H7/h6，并做好轴向定位，同时保证图示δ间隙，法兰(A)的紧定螺钉在拧入前要涂好防松胶；
5) 安装时绝不允许用猛力打入法兰，当配*用H7/h6时，为防止法兰变形，应采用专用的安装套筒，而且可以较轻松的装入.
| 规格(NM) |
D1 |
D2 |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
M1 |
M2 |
P |
Y |
V1 |
J |
E |
T |
M |
d |
H |
B |
δ |
| DZD5-5 |
63 |
46 |
35 |
72 |
80 |
22 |
37 |
25.5 |
15 |
12 |
14 |
5 |
3-3.1 |
3.5 |
26 |
6 |
M4 |
12/15 |
13.8/17.3 |
4/5 |
0.2 |
| DZD5-10 |
80 |
60 |
42 |
90 |
100 |
24.5 |
44.5 |
28.5 |
20 |
14 |
14 |
6 |
3-4.1 |
4.3 |
31 |
8 |
M5 |
15/20 |
17.3/22.8 |
5/6 |
0.2 |
| DZD5-20 |
100 |
76 |
52 |
112 |
125 |
28 |
53 |
33 |
25 |
17 |
15 |
7 |
3-5.2 |
5 |
41 |
10 |
M5 |
20/25 |
22.8/28.3 |
6/8 |
0.2 |
| DZD5-40 |
125 |
95 |
62 |
137 |
150 |
31 |
61 |
37 |
30 |
20 |
16 |
7 |
3-6.2 |
5.5 |
49 |
12 |
M6 |
25/30 |
28.3/33.3 |
6/8 |
0.4 |
| DZD5-50 |
135 |
95 |
62 |
150 |
160 |
33 |
63 |
39 |
30 |
20 |
16 |
7 |
3-6.2 |
5.5 |
49 |
12 |
M6 |
25/30 |
28.3/33.3 |
8/8 |
0.4 |
| DZD5-80 |
160 |
120 |
80 |
175 |
190 |
35 |
73 |
42 |
38 |
25.5 |
17 |
9 |
3-8.2 |
6 |
65 |
15 |
M8 |
30/40 |
33.3/43.3 |
8/8 |
0.4 |
| DZD5-100 |
180 |
120 |
80 |
195 |
210 |
39 |
75.5 |
45.5 |
38 |
28.5 |
17 |
9 |
3-8.2 |
6 |
65 |
15 |
M8 |
30/40 |
33.3/43.3 |
8/12 |
0.4 |
| DZD5-160 |
200 |
158 |
100 |
215 |
230 |
41.5 |
86.5 |
50.5 |
45 |
29.5 |
21 |
9 |
3-10.3 |
7 |
83 |
18 |
M8 |
40/50 |
43.3/53.8 |
12/14 |
0.5 |
| DZD5-220 |
230 |
158 |
100 |
245 |
260 |
45 |
88.5 |
53.5 |
45 |
32.5 |
21 |
9 |
3-10.3 |
7 |
83 |
18 |
M8 |
40/50 |
43.3/53.8 |
12/14 |
0.5 |
| DZD5-320 |
260 |
210 |
125 |
276 |
292 |
48 |
102 |
59 |
54 |
38.5 |
21 |
11 |
4-12.3 |
8 |
105 |
22 |
M10 |
50/60 |
53.8/64.4 |
14/18 |
0.6 |
| DZD5-480 |
285 |
210 |
125 |
315 |
335 |
59 |
107.5 |
67.5 |
54 |
46.5 |
21 |
11 |
4-12.3 |
8 |
105 |
22 |
M10 |
50/60 |
53.8/64.4 |
14/18 |
0.6 |
| DZD5-1000 |
400 |
315 |
200 |
420 |
440 |
70 |
143.5 |
85.5 |
76 |
59.5 |
26 |
13 |
4-16.4 |
13 |
130 |
30 |
M12 |
80/100 |
85.4/106.4 |
22/28 |
0.7 |
