DLD1-16,DLD1-40,DLD1-60,DLD1-80,DLD1-100,DLD1-120,DLD1-160,DLD1-180,DLD1-320,单片电磁离合器
DLD1-180A,DLD1-160A,DLD1-160AT,
DLD1-120A,
DLD1-100,DLD1-100A,DLD1-100T,DLD1-160A,DLD1-160AT
主要性能参数
|
规格
Specifications
|
16
|
40
|
60
|
80
|
100
|
120
|
160
|
180
|
320
|
|
额定动力矩N·m
Rated Dynamic Tbrque
|
160
|
400
|
600
|
800
|
1000
|
1200
|
1600
|
1800
|
3200
|
|
额定工作电压
Rated Voltage DC.V
|
24或110
|
24或110
|
24或110
|
24或110
|
24或110
|
24或110
|
24或110
|
24或110
|
24或110
|
|
线圈功率 (20℃)
Coil power W
|
50
|
80
|
92
|
120
|
120
|
150
|
150
|
180
|
220
|
|
接通时间
Engagement Time (＜)S
|
0.8
|
1.2
|
1.2
|
1.5
|
1.5
|
1.5
|
1.8
|
1.8
|
2
|
|
断开时间
Disengagement Time(＜)S
|
0.6
|
0.6
|
O.8
|
0.8
|
0.8
|
O.8
|
0.9
|
0.9
|
1
|
|
允许最高转速
Allowed Max Speed rpm
|
2000
|
2000
|
2000
|
1500
|
1500
|
1500
|
1500
|
1500
|
1000
|
|
重量
Weight kg
|
29
|
32
|
35
|
78
|
90
|
135
|
150
|
170
|
230
|
|

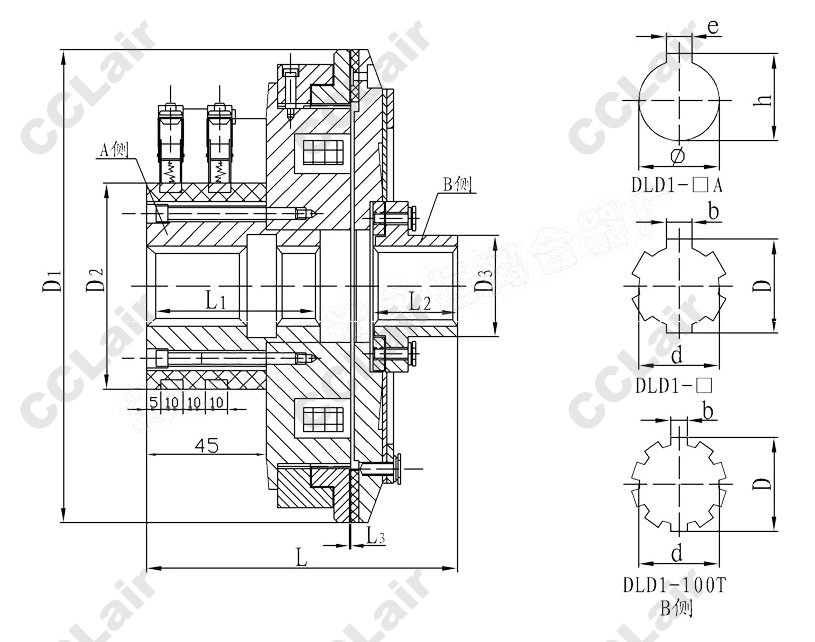

规格Size
|
16
|
40
|
60
|
80
|
100
|
120
|
160
|
180
|
320
|
|
径向
尺寸
Radil Demensions
(mm)
|
D1
|
255
|
314
|
334
|
390
|
420
|
446
|
480
|
500
|
590
|
|
D2
|
125
|
125
|
170
|
170
|
170
|
170
|
200
|
200
|
210
|
|
D3
|
70
|
80
|
90
|
90
|
90
|
100
|
110
|
95
|
130
|
|
轴向
尺寸
Axial Dimensions
(mm)
|
L
|
167
|
186.5
|
195
|
203
|
212
|
219
|
270
|
320
|
360
|
|
L1
|
75
|
85
|
83
|
83
|
105
|
105
|
110
|
130
|
150
|
|
L2
|
58
|
58
|
58
|
58
|
75
|
75
|
110
|
130
|
150
|
|
δ
|
O.6
|
0.6
|
0.6
|
0.7
|
0.7
|
O.7
|
0.8
|
0.8
|
1
|
|
型号
|
轴向尺寸
|
|
A侧
|
B侧
|
|
D
|
d
|
b
|
φ
|
h
|
e
|
D
|
d
|
b
|
φ
|
h
|
e
|
|
DLD1-100
|
60
|
54
|
14
|
|
|
|
60
|
54
|
14
|
|
|
|
|
DLD1-100A
|
|
|
|
60H7
|
64.4
|
18JS9
|
|
|
|
60H7
|
64.4
|
18JS9
|
|
DLD1-100T
|
60
|
54
|
14
|
|
|
|
38
|
33
|
6
|
|
|
|
|
DLD1-160A
|
|
|
|
65H7
|
70.6H11
|
18JS9
|
|
|
|
75H7
|
81.1H11
|
20JS9
|
|
DLD1-160AT
|
|
|
|
70H7
|
74.3
|
20
|
|
|
|
55H7
|
58.6
|
16
|
