截止式气控阀
首页 > 了解产品 > 气动器材 气动阀 > 控制元件 > 截止式气控阀
XC5404-04,XC5404-06,XC5404-08,气控阀
2013-01-22 11:261133
信息概况
  • 价格：未填
  • 型号：XC5404-04,XC5404-06,XC5404-08
  • 发货：3天内
发送询价


XC5404-04,XC5404-06,XC5404-08,气控阀

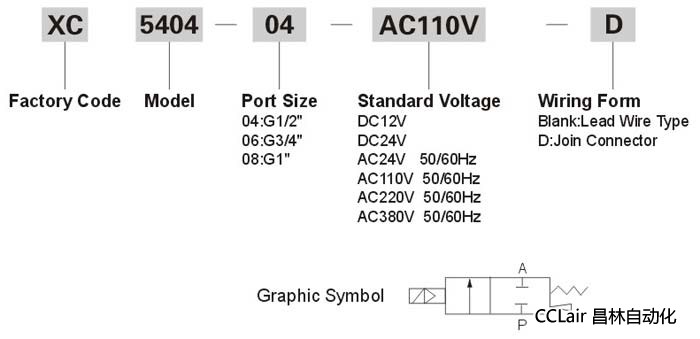

订购码

产品规格


Model
XC5404-04
XC5404-06
XC5404-08
Working Medium

Air, Water, Oil, Gas
Motion Pattern

Guide Type
Type
Normal Close Type
Working-pressure(kgf/cm )
Gas:1~50,Liguid:1~50
Gas:1~40,Liguid:01~25
Gas:1~40, ?Liguid:1~25
Max. Pressure Resistance(kgf/cm2)
75
60
Control Pressure Rang
0.3~0.6MPa
(mm)Aperture of Flow Rate
12
20
25
KV Value

2.0

5.0

10.0
Joint Pipe Bore

G1/2"

G3/4"

G1"
Operating Temperature Range

-5~+150
Voltage Range
±10%
Protect Class Power
IP65
Consumption
AC:5.5VA DC:9W
Insulation
F Class

Material of Body

Brass

Material of Oil Seal
PTFE

外形尺寸
