角座阀

XCP-15,XCP-20,XCP-25,XCP-32,XCP-40,XCP-50,角阀

2013-01-22 11:22749

信息概况

XCP-15,XCP-20,XCP-25,XCP-32,XCP-40,XCP-50,角阀

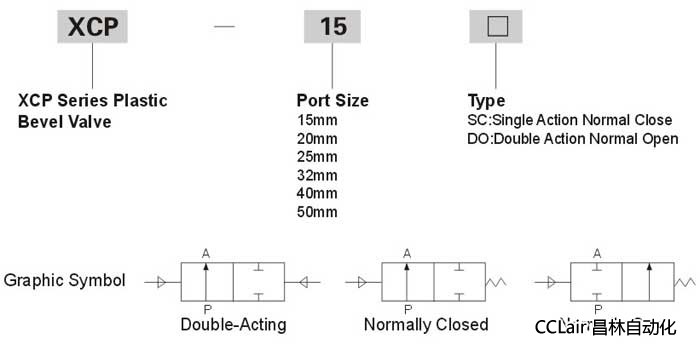

订购码

产品规格

Orifice Size	15	20	25	32	40	50
Port size	G1/2"	G3/4"	G1"	G1-1/4"	G1-1/2"	G2"
KV Value(m3/h)	4.2	8	19	27.5	42	55
Max.Working Pressure(Mpa)	0~1.6	0~1.1	0~1.1	0~1.5	0~1.25	0~1.0
Min.Pilot Pressure(Mpa)	0.39	0.39	0.42	0.5	0.44	0.4
Polyamide	50	50	63	63	63	80
Medium Temperature	-10~+180℃
Flow Direction	A(Flow Direction Below The Seat) or B(Flow Direction above The Seat)

外形尺寸
