特性/Characteristic:

●依赖它们在回路中的位置可作量入，量出，旁伸控制。
●孔口流量正比压降平主根(由于非补偿设计)因此只适合固定负载,变动负载要用压力补偿阀。
●流路可正反向由1到2口或2到1口。
●当节流阀关闭时可关闭流量,关闭时零泄漏。
●Dependant on their position in the circuit they can provide meter-in,meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●Flow path is bi-directional i.e.1 to 2 or 2 to 1.
●Positive shut off of flow when needle is closed.
注:阀孔型号:Valve Cavity:C082
成型刀具 Cavity Tools:CT28-D.CT28-R
请参阅 Reference P91

  性能表/Specification:

型号 Model	阀系说明 Description	额定流量 Rated Flow	最高压力 Max.pressure	重量 Weight
CNS-082	微调型,全闭式 Fine adjustment, positiver shut off.	10/min	250bar	L:0.09Kg K:0.11Kg

  选购指南/How to order:

CNS	082	L	10	N
系列编号： 节流阀 Series No. Needle Valves	阀孔型号 Cavity Size	调整方式 Controls L-螺杆调整 Standard Screw Adjustment K-旋钮调整 Hand Knob & Locknob Adj.	流量调整范围 Flow ranges  10-0 to 10 /min	油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton.

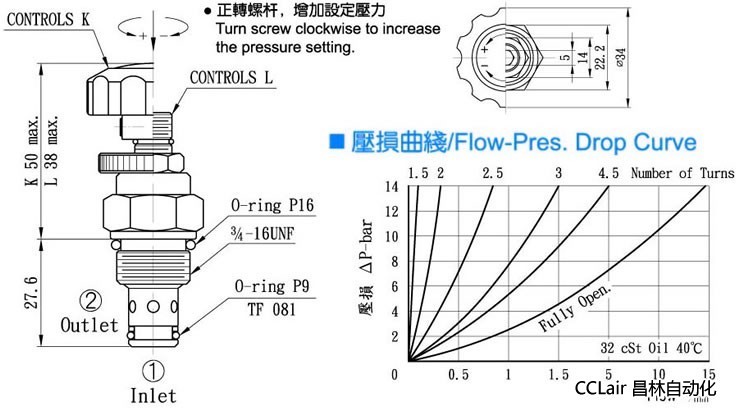

  尺寸图/Dimensions(mm)
