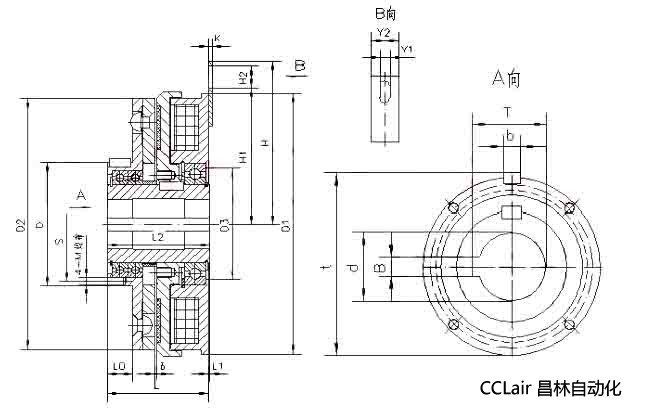

规格/Nm

D1

D2

D3

d

B

T

D

b

t

L

L0

L1

L2

K

Y1

Y2

H

H1

H2

S

M

δ

-5

70

63

32

12

4

13.8

38

4

39.5

44

12.5

0

44

2

4.5

14

50

35

9.5

34

M3深4

0.2

-10

88

80

38

15

5

17.3

48

6

50.5

47

12

0

48

2

6.5

16

63

48

11.5

42

M4深6

0.2

-20

108

100

48

20

6

22.8

60

6

62.5

57.5

16

1

56

2

6.5

16

73

58

11.5

54

M4深6

0.2

-40

133

125

55

25

8

28.3

70

8

73

65

17.5

0.5

65

2

6.5

16

85

70

11.5

62

M4深6

0.4

-50

143

135

55

25

8

28.3

70

8

73

66.5

17.5

0.5

66

2

6.5

16

90

75

11.5

62

M4深6

0.4

-80

168

160

70

30

8

33.3

95

8

98

63

19

1

74

3

8.5

25

111

88

18.5

88

M5深8

0.4

-100

188

180

80

35

10

38.3

95

8

98

80

21

1

81

3

8.5

25

121

98

18.5

88

M5深8

0.4

-160

210

200

90

40

12

43.3

108

10

111

86

21

2.5

88

3

8.5

25

133

110

18.5

100

M5深8

0.5

-220

240

230

90

40

12

43.3

108

10

111

90

21

1.5

91

3

8.5

25

148

125

18.5

100

M5深8

0.5

-320

270

260

115

50

14

53.8

128

12

131

104

26

1.5

105

4

10.5

28

169

141

22.5

118

M8深10

0.6

-480

295

285

115

50

14

53.8

128

12

131

109

26

0.5

109

4

10.5

28

181

153

22.5

118

M8深10

0.6

-1000

410

400

190

80

22

85.4

200

14

203.5

139

36

0

138

5

12.5

32

250

212

26.5

190

M8深10

0.7
