24YF3O-E10B-ZZ,24YF3O-E16B-ZZ,24YF3O-E20B-ZZ,34YF3O-E10B-ZZ,34YF3O-E16B-ZZ,34YF3O-E20B-ZZ,,液动换向阀,生产厂家,价格
24YF3※-E16B※2,234DYF3※-E16B※2,24YF3※-E20B※2,34DYF3※-E20B※2
| 用途 |
| |
| 液动换向阀依靠外接控制油路控制阀芯移动，从而使主油路换向，以达到使执行机构改变运动方向。 |
|
 |
|
| |

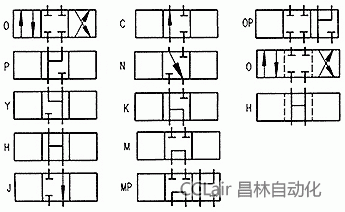

阀芯机能 |
| |
 |
| |

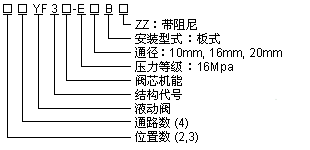

型号说明 |
| |
 |
| |
技术参数 |
| |
通径
mm |
额定压力
Mpa |
额定流量L/min |
使用油温
℃ |
油液粘度
mm2/s |
最大控制压力 Mpa |
最小控制压力
Mpa |
换向过程所需容量 cm3 |
重量Kg |
| PAB口 |
T口 |
二位 |
三位 |
| a→b |
b→a |
中位→a b |
b→a a→b |
| 10 |
16 |
16 |
80 |
10～60 |
7～320 |
16 |
0.6 |
5.4 |
5.4 |
5.4 |
5.7 |
4.7 |
| 16 |
16 |
16 |
180 |
10～60 |
7～320 |
16 |
0.6 |
6.9 |
6.9 |
3.4 |
6.9 |
10.2 |
| 20 |
16 |
16 |
300 |
10～60 |
7～320 |
16 |
0.6 |
19.3 |
19.3 |
9.7 |
19.3 |
15.5 |
|
| |

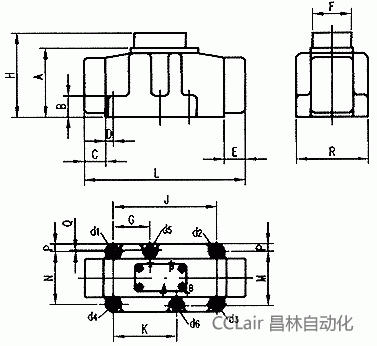

外形尺寸 |
| |
 |
| |
| 尺寸 mm |
| 通径 mm |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
Q |
R |
d1 |
d2 |
d3 |
d4 |
d5 |
d6 |
| 10 |
86 |
28 |
35 |
25 |
35 |
48 |
0 |
102 |
54 |
0 |
174 |
0 |
46 |
11.5 |
0 |
69 |
Φ6.6 |
Φ6.6 |
Φ0 |
Φ6.6 |
0 |
0 |
| 16 |
106 |
50 |
25 |
18 |
32 |
48 |
34.1 |
122 |
101.6 |
50 |
193 |
71.5 |
69.9 |
10 |
1.6 |
90 |
Φ11 |
Φ11 |
Φ11 |
Φ11 |
Φ7 |
Φ7 |
| 20 |
115 |
52 |
36 |
18 |
36 |
62 |
53.2 |
135 |
130.2 |
77 |
262 |
92.1 |
92.1 |
11.9 |
0 |
116 |
Φ13 |
Φ13 |
Φ13 |
Φ13 |
Φ13 |
Φ13 |
|
24YF3O-E10B-ZZ,24YF3C-E10B-ZZ,24YF3OP-E10B-ZZ,24YF3P-E10B-ZZ,24YF3N-E10B-ZZ,液动换向阀
24YF3Y-E10B-ZZ,24YF3K-E10B-ZZ,24YF3H-E10B-ZZ,24YF3M-E10B-ZZ,24YF3J-E10B-ZZ,24YF3MP-E10B-ZZ,
24YF3O-E16B-ZZ,24YF3C-E16B-ZZ,24YF3OP-E16B-ZZ,24YF3P-E16B-ZZ,24YF3N-E16B-ZZ,
24YF3Y-E16B-ZZ,24YF3K-E16B-ZZ,24YF3H-E16B-ZZ,24YF3M-E16B-ZZ,24YF3J-E16B-ZZ,24YF3MP-E16B-ZZ,
24YF3O-E20B-ZZ,24YF3C-E20B-ZZ,24YF3OP-E20B-ZZ,24YF3P-E20B-ZZ,24YF3N-E20B-ZZ,
24YF3Y-E20B-ZZ,24YF3K-E20B-ZZ,24YF3H-E20B-ZZ,24YF3M-E20B-ZZ,24YF3J-E20B-ZZ,24YF3MP-E20B-ZZ,
34YF3O-E10B-ZZ,34YF3C-E10B-ZZ,34YF3OP-E10B-ZZ,34YF3P-E10B-ZZ,34YF3N-E10B-ZZ,
34YF3Y-E10B-ZZ,34YF3K-E10B-ZZ,34YF3H-E10B-ZZ,34YF3M-E10B-ZZ,34YF3J-E10B-ZZ,34YF3MP-E10B-ZZ,
34YF3O-E16B-ZZ,34YF3C-E16B-ZZ,34YF3OP-E16B-ZZ,34YF3P-E16B-ZZ,34YF3N-E16B-ZZ,
34YF3Y-E16B-ZZ,34YF3K-E16B-ZZ,34YF3H-E16B-ZZ,34YF3M-E16B-ZZ,34YF3J-E16B-ZZ,34YF3MP-E16B-ZZ,
34YF3O-E20B-ZZ,34YF3C-E20B-ZZ,34YF3OP-E20B-ZZ,34YF3P-E20B-ZZ,34YF3N-E20B-ZZ,
34YF3Y-E20B-ZZ,34YF3K-E20B-ZZ,34YF3H-E20B-ZZ,34YF3M-E20B-ZZ,34YF3J-E20B-ZZ,34YF3MP-E20B-ZZ,
