限流器

首页 > 了解产品 > 气动器材气动阀 > 其他控制阀 > 限流器

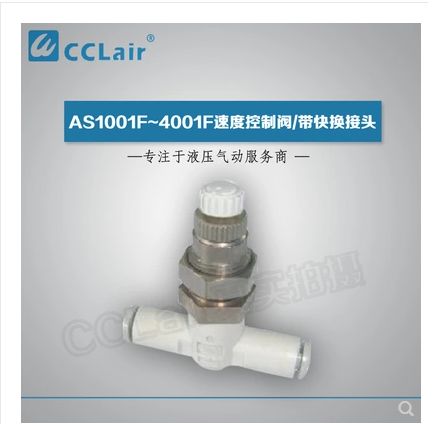

AS1001F-04,AS1001F-06,AS2001F-04,AS2001F-06,管道型调节限流器

2018-12-26 10:081448

信息概况

价格：未填
品牌：CCLair/昌林
型号：AS1001F-04,AS1001F-06,AS2001F-04,AS2001F-06,
发货：3天内

AS1001F-04,AS1001F-06,AS2001F-04,AS2001F-06,管道型调节限流器,价格

型号	适用管子外径φd	T	H1)	φD1	φD2	L1	L2	L3	L4		2)A		M1	?g
									MAX.	MIN.	MAX.	MIN.
AS1201F-M3-04	4	M5×0.5	5.5	9.3	7.2	16.1	19.7	10	26.6	24.1	24	21.5	12.7	4
AS1201F-M5-04	4	M5×0.8	8	9.3	9.6	17.3	22.1	12.3	28.6	28.6	25	22.2	12.7	7
AS1201F-M5-06	6			11.6		18.1		11.7					13.5
AS2201F-01-04S	4	R(PT)1/8	12(12.7)	9.3	14.2	20.4	27.5	14.3	36.1	31.1	32.1	27.1	12.7	17
AS2201F-01-06S	6			11.6									13.5
AS2201F-01-08S	8			15.2		25.3	32.4						18.5	19
AS2201F-01-10S	10			18.5		33.1	40.2	15					21	21
AS2201F-02-04S	4	R(PT)1/4	17(17.5)	10.4	18.5	25.2	34.4	18.2	40.4	35.4	34.4	29.4	16	32
AS2201F-02-06S	6			12.8									17
AS2201F-02-08S	8			15.2		27.2	36.4						18.5	34
AS2201F-02-10S	10			18.5		33.9	43.2	20					21	36
AS3201F-02-06S	6		19	12.8	23	27.8	39.3	21.8	48.8	48.8	42.8	37.8	17	60
AS3201F-02-08S	8			15.2		29.5	41						18.5	63
AS3201F-02-10S	10			18.5		31.8	43.3						21	67
AS3201F-02-12S	12			20.9		32.8	44.3						22	69
AS3201F-03-06S	6	R(PT)3/8	19	12.8	23	27.8	39.3	20.9	46.5	44.5	40.2	35.2	17	55
AS3201F-03-08S	8			15.2		29.5	41						18.5	57
AS3201F-03-10S	10			18.5		31.8	43.3						21	59
AS3201F-03-12S	12			20.9		32.8	44.3						22	61
AS4201F-04-10S	10	R(PT)1/2	24(23.8)	18.5	28.6	33.6	47.9	25.4	57.6	50.1	49.6	42.1	21	100
AS4201F-04-12S	12			20.9		34.6	48.9						22	101

?lt;/td>	?φd	T	H1)	φD1	φD2	L1	L2	L3	L4		2)A		M1	?g
									MAX.	MIN.	MAX.	MIN.
AS1211F-M3-04	4	M5×0.5	5.5	9.3	7.2	16.1	19.7	10	26.6	24.1	24	21.5	12.7	4
AS1211F-M5-04	4	M5×0.8	8	9.3	9.6	17.3	22.1	12.3	28.6	28.6	25	22.2	12.7	7
AS1211F-M5-06	6			11.6		18.1		11.7					13.5
AS2211F-01-04S	4	R(PT)1/8	12(12.7)	9.3	14.2	20.4	27.5	14.3	36.1	31.1	32.1	27.1	12.7	17
AS2211F-01-06S	6			11.6									13.5
AS2211F-01-08S	8			15.2		25.3	32.4						18.5	19
AS2211F-01-10S	10			18.5		33.1	40.2	15					21	21
AS2211F-02-04S	4	R(PT)1/4	17(17.5)	10.4	18.5	25.2	34.4	18.2	40.4	35.4	34.4	29.4	16	32
AS2211F-02-06S	6			12.8									17
AS2211F-02-08S	8			15.2		27.2	36.4						18.5	34
AS2211F-02-10S	10			18.5		33.9	43.2	20					21	36
AS3211F-02-06S	6		19	12.8	23	27.8	39.3	21.8	48.8	48.8	42.8	37.8	17	60
AS3211F-02-08S	8			15.2		29.5	41						18.5	63
AS3211F-02-10S	10			18.5		31.8	43.3						21	67
AS3211F-02-12S	12			20.9		32.8	44.3						22	69
AS3211F-03-06S	6	R(PT)3/8	19	12.8	23	27.8	39.3	20.9	46.5	44.5	40.2	35.2	17	55
AS3211F-03-08S	8			15.2		29.5	41						18.5	57
AS3211F-03-10S	10			18.5		31.8	43.3						21	59
AS3211F-03-12S	12			20.9		32.8	44.3						22	61
AS4211F-04-10S	10	R(PT)1/2	24(23.8)	18.5	28.6	33.6	47.9	25.4	57.6	50.1	49.6	42.1	21	100
AS4211F-04-12S	12			20.9		34.6	48.9						22	101

?lt;/td>	?φd	φD1	φD2	L1	L2	L3		M1	?g
?lt;/td>	?φd	φD1	φD2	L1	L2	MAX.	MIN.	M1	?g
AS1001F-04	4	9.3	10	39.2	5.2	24.2	21.4	12.7	7
AS1001F-06	6	11.6	11.8	40.7	6.2	25.2	22.4	13.5	8
AS2001F-04	4	9.3		40.7	5.2	32.6	27.6	12.7	12
AS2001F-06	6	11.6		44.8	6.3	33.7	28.7	13.5	13
