气动接头
首页 > 了解产品 > 气动辅助元件 > 接头类 > 气动接头

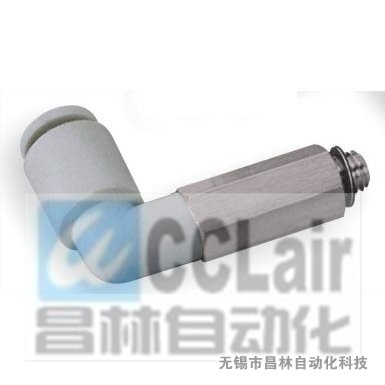

KB2W08-01S,KB2W08-02S,KB2W08-03S,KB2W10-02S,KB2W10-03S,KB2W10-04S,外螺加长外接头
2011-12-24 10:16688
信息概况
  • 价格：未填
  • 型号：KB2W08-01S,KB2W08-02S,KB2W08-03S,KB2W10-02S,KB2W10-03S,KB2W10-04S,
  • 发货：3天内
发送询价
KB2W08-01S,KB2W08-02S,KB2W08-03S,KB2W10-02S,KB2W10-03S,KB2W10-04S,外螺加长外接头,价格

MODEL 管径 R H φD1 φD2 L1 L2 A M CT(mm2) 重量
KB2W04-M5 4 M5×0.8 8 10.4 8 18 30 32 16 3.0 11
KB2W04-01S 1/8 10 10 37.5 38.5 4.0 23
KB2W04-02S 1/4 14 43.5 42.5 38
KB2W06-M5 6 M5×0.8 8 12.8 8 20 30.5 33.5 17 3 11
KB2W06-01S 1/8 10 10 40 42.5 10.9 26
KB2W06-02S 1/4 14 46 46.5 41
KB2W06-03S 3/8 17 48 48 67
KB2W08-01S 8 1/8 12 15.2 12 23 43.5 47 18.5 20.5 30
KB2W08-02S 1/4 14 49.5 51 47
KB2W08-03S 3/8 17 51.5 52.5 74
KB2W10-02S 10 1/4 17 18.5 17 26.5 56.5 59.5 21 33.5 66
KB2W10-03S 3/8 58.5 61 76
KB2W10-04S 1/2 22 65 66 145
KB2W12-02S 12 1/4 17 20.9 17 28.5 57.5 62 22 47.7 68
KB2W12-03S 3/8 59.5 63.5 78
KB2W12-04S 1/2 22 66 68.5 147
