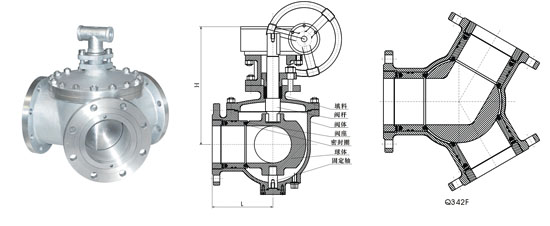

Q42Y-150-300LBR-DN80,Q42Y-150-300LBR-DN100,Q42Y-150-300LBR-DN125,Q42Y-150-300LBR-DN150,Q42Y-150-300LBR-DN200,120度角Y型三通球阀

Y型三通球阀的阀座密封根据工况不同，可分别采用软密封、喷焊镍基合金（硬度大于HRC60）、超音速涂钨钴合金（硬度大于HRC70）及特种硬化材料等多种先进工艺，适用各种苛刻工况，软密封适用200℃以下工况，硬密封碳钢不超过425℃，不锈钢不超过℃

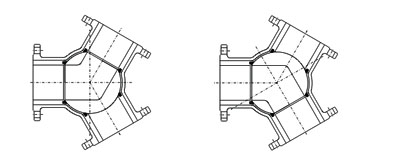

Y型三通球阀有相互成120°和两通孔成135°，根据需要可实现对介质流向切换两种工况。



型号、材料及主要参数

Y形三通球阀的外形尺寸PN10-40
