FL41F46-2.5-DN65,FL41F46-2.5-DN80,FL41F46-2.5-DN100,FL41F46-2.5-DN125,FL41F46-2.5-DN150,FL41F46-2.5-DN200,衬氟放料阀

衬氟放料阀介绍：

(一)、衬氟放料阀耐腐蚀性
1、衬氟放料阀使用介质如水、、酒精、氨、碳酸钡、苯(WCB材质的较低用温度为-29℃,较高温度为425℃。)
2、衬氟放料阀使用介质如颗粒、油品、纸浆、二氧化碳 气(不锈钢材质的较低使用温度为-100℃，较高使用温度为230℃。)
3、衬氟放料阀严禁使用含氟离子液体(如HF等)也不能用强碱及磷酸(温度＞150℃ 浓度＞30%)。
(二)、不锈钢的一般工作温度：≤150℃
(三)、衬氟放料阀压力范围：0.6~2.5MPa
(四)、衬氟放料阀通径范围：25~250mm

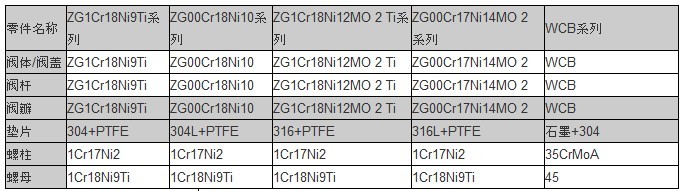

FL41F46衬氟放料阀主要零件材质:

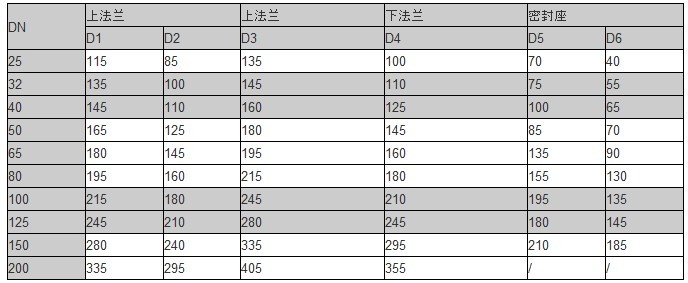

FL41F46衬氟放料阀连接尺寸：
