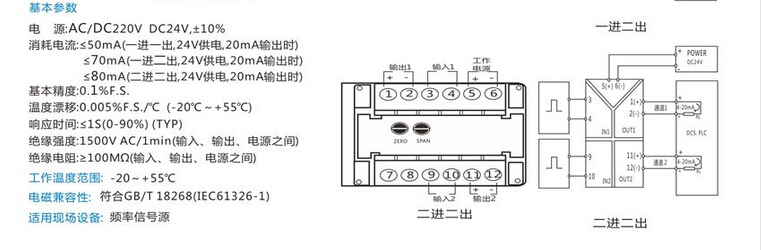

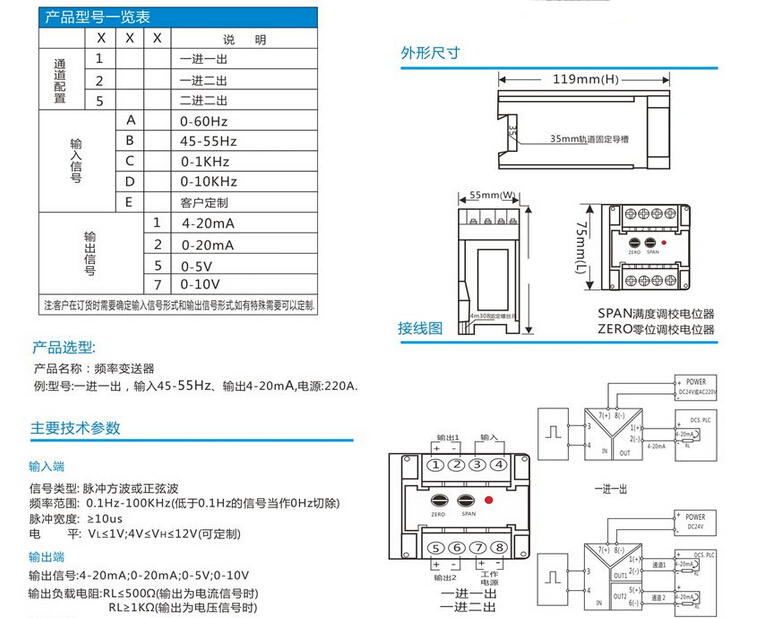

JD204F频率变送器将工业现场频率信号0-60HZ、0-1KHZ、0-10KHZ，45-55HZ等 隔离、转换为4-20mA、0-10V等标准信号，DIN导轨式安装方式

JD204F频率变送器输入范围：AC0-100V、45-55HZ、0-60HZ、0-10HZ等用户特定

JD20F频率变送器输出范围：DC4-20mA、0-20mA、0-5V、0-10V、1-5V等用户需要的标准信号

JD204F频率变送器工作电源：AC/DC110-220V。

产品型号：

JD384F-1A1,JD384F-1A2,JD384F-1A5,JD384F-1A7,JD384F-1B1,JD384F-1B2,JD384F-1B5,JD384F-1B7,JD384F-1C1,JD384F-1C2,

JD384F-1C5,JD384F-1C7,JD384F-1D1,JD384F-1D2,JD384F-1D5,JD384F-1D7,JD384F-1E1,JD384F-1E2,JD384F-1E5,JD384F-1E7,
JD384F-2A1,JD384F-2A2,JD384F-2A5,JD384F-2A7,JD384F-2B1,JD384F-2B2,JD384F-2B5,JD384F-2B7,JD384F-2C1,JD384F-2C2,

JD384F-2C5,JD384F-2C7,JD384F-2D1,JD384F-2D2,JD384F-2D5,JD384F-2D7,JD384F-2E1,JD384F-2E2,JD384F-2E5,JD384F-2E7,
JD384F-5A1,JD384F-5A2,JD384F-5A5,JD384F-5A7,JD384F-5B1,JD384F-5B2,JD384F-5B5,JD384F-5B7,JD384F-5C1,JD384F-5C2,

JD384F-5C5,JD384F-5C7,JD384F-5D1,JD384F-5D2,JD384F-5D5,JD384F-5D7,JD384F-5E1,JD384F-5E2,JD384F-5E5,JD384F-5E7,
