WRKKG1-31B10,WRKKG1-42B11,,WRRKG2-43B52,防内漏套管式热电偶

2017-04-16 18:43469

信息概况

价格：未填
型号： WRKKG1-31B10,WRKKG1-42B11,,WRRKG2-43B52,防内漏套管式热电偶
发货：3天内

发送询价

WRKKG1-31B10,WRKKG1-42B11,,WRRKG2-43B52,防内漏套管式热电偶

用途及特点
适用于烟气温度测量，当保护管磨损穿孔仍然防止有毒有害气体泄漏。
技术参数表

热电偶	测温元件	外保护管	工作温度	使用温度
K型 S型 R型	单支	耐磨套管	0～1100℃	<2.5MPa

选型表

WR	W:温度传感器 R:热电偶
	代号	感温元件材料
	K	镍铬一镍硅，K分度号
	S	S分度号\|铂铑10-铂
	R	B分度号\|铂铑10-铂
		代号	结构形式
		KG	防内漏专用代号
			代号	偶丝对数
			1	单支
			2	双支
				代号	接线盒形式
				3	防水式接线盒（防护等级IP65）
				4	防爆式接线盒（防爆等级ExdIIBT4或dIICT6）
					代号	测量端形式
					1	绝缘式
					2	接地式
					3	绝缘分离式（适用双支）
						代号	安装固定装置
						B	阻漏式
							代号	安装固定形式
							1	无固定过程连接
							2	固定螺纹连接
							3	活动法兰
							4	固定法兰
							5	整体锥孔锥形温度套管
								代号	保护管直径
								0	Φ16外保护管
								1	Φ20外保护管
								2	特殊外径尺寸温度套管
WR	K	KG	2	3	1	B	2	0	WRKKG2-31B20

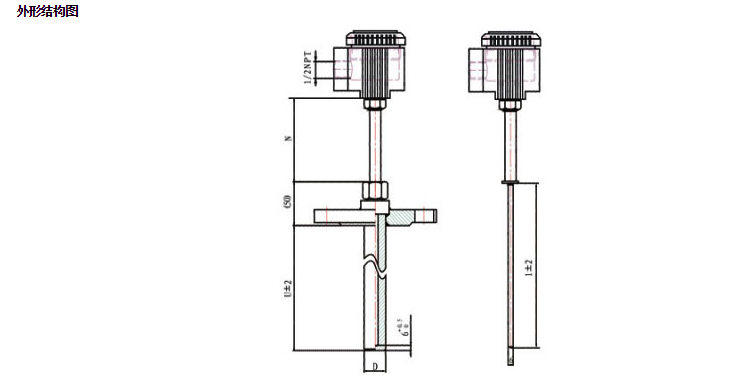

外形结构图
