五位瞬时流量＋八位瞬时累积显示
SWP-LED系列流量积算控制仪适用于各种液体、蒸汽、天然气、一般气体等的流量积算测量控制。

一、主要特点
1、万能无跳线输入技术，使每台仪表仅通过简单快捷的参数设置，即可适配各种分度号。进一步提高了仪表的多用性与可靠性。
2、流量系数K的自动演算具有多种输入信号功能，可配接各种差压、压力及频率式流量传感器（如涡街、涡轮、孔板等）,可自由选择多种补偿方式（如温度、压力补偿等）。
3、具有极宽的显示测量范围，可切换显示温度补偿测量值、压力补偿测量值、流量（差压、频率）测量值等，及十二位的流量累积测量值（0--999999999999字），可精确到小数点后三位（0.001）进行累积，可设定仪表内部参数使最大累积达到9999999999.99′100。
4、采用查表法进行密度补偿，可全自动对过热蒸汽、饱和蒸汽进行精度极高的积算控制。
5、仪表面板增加了一组LED发光二极管状态指示，每一发光二极管对应一种状态，用以指明对应显示值的工程含义，方便用户观测。

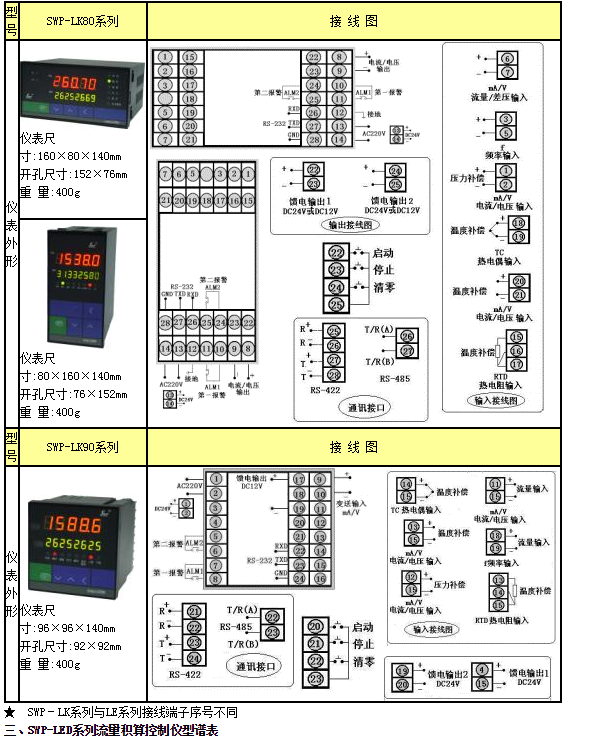

二、仪表外形及接线图（以下为基本配线，特殊订货请参见随机接线图）

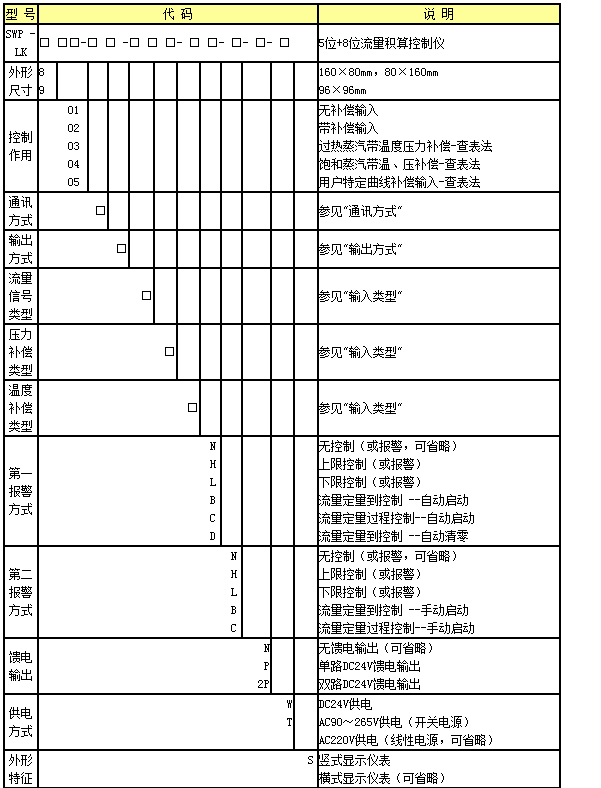

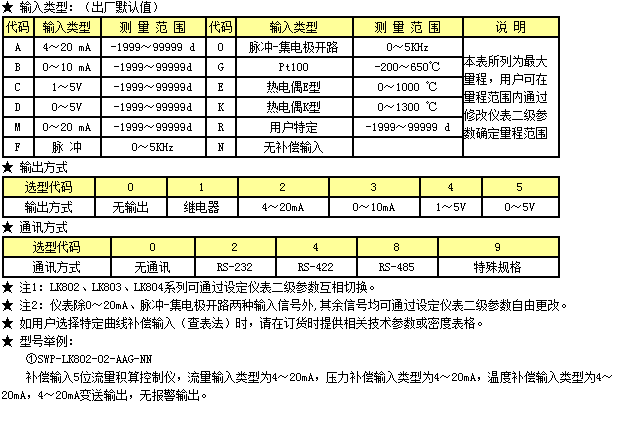

SWP-LK802-02-AAG-NN
SWP-LK801-00,SWP-LK801-01,SWP-LK801-02,SWP-LK801-03,SWP-LK801-04,SWP-LK801-05
SWP-LK801-20,SWP-LK801-21,SWP-LK801-22,SWP-LK801-23,SWP-LK801-24,SWP-LK801-25
SWP-LK801-40,SWP-LK801-41,SWP-LK801-42,SWP-LK801-43,SWP-LK801-44,SWP-LK801-45
SWP-LK801-80,SWP-LK801-81,SWP-LK801-82,SWP-LK801-83,SWP-LK801-84,SWP-LK801-85
SWP-LK802-00,SWP-LK802-01,SWP-LK802-02,SWP-LK802-03,SWP-LK802-04,SWP-LK802-05
SWP-LK802-20,SWP-LK802-21,SWP-LK802-22,SWP-LK802-23,SWP-LK802-24,SWP-LK802-25
SWP-LK802-40,SWP-LK802-41,SWP-LK802-42,SWP-LK802-43,SWP-LK802-44,SWP-LK802-45
SWP-LK802-80,SWP-LK802-81,SWP-LK802-82,SWP-LK802-83,SWP-LK802-84,SWP-LK802-85
SWP-LK803-00,SWP-LK803-01,SWP-LK803-02,SWP-LK803-03,SWP-LK803-04,SWP-LK803-05
SWP-LK803-20,SWP-LK803-21,SWP-LK803-22,SWP-LK803-23,SWP-LK803-24,SWP-LK803-25
SWP-LK803-40,SWP-LK803-41,SWP-LK803-42,SWP-LK803-43,SWP-LK803-44,SWP-LK803-45
SWP-LK803-80,SWP-LK803-81,SWP-LK803-82,SWP-LK803-83,SWP-LK803-84,SWP-LK803-85
SWP-LK804-00,SWP-LK804-01,SWP-LK804-02,SWP-LK804-03,SWP-LK804-04,SWP-LK804-05
SWP-LK804-20,SWP-LK804-21,SWP-LK804-22,SWP-LK804-23,SWP-LK804-24,SWP-LK804-25
SWP-LK804-40,SWP-LK804-41,SWP-LK804-42,SWP-LK804-43,SWP-LK804-44,SWP-LK804-45
SWP-LK804-80,SWP-LK804-81,SWP-LK804-82,SWP-LK804-83,SWP-LK804-84,SWP-LK804-85
SWP-LK901-00,SWP-LK901-01,SWP-LK901-02,SWP-LK901-03,SWP-LK901-04,SWP-LK901-05
SWP-LK901-20,SWP-LK901-21,SWP-LK901-22,SWP-LK901-23,SWP-LK901-24,SWP-LK901-25
SWP-LK901-40,SWP-LK901-41,SWP-LK901-42,SWP-LK901-43,SWP-LK901-44,SWP-LK901-45
SWP-LK901-80,SWP-LK901-81,SWP-LK901-82,SWP-LK901-83,SWP-LK901-84,SWP-LK901-85
SWP-LK902-00,SWP-LK902-01,SWP-LK902-02,SWP-LK902-03,SWP-LK902-04,SWP-LK902-05
SWP-LK902-20,SWP-LK902-21,SWP-LK902-22,SWP-LK902-23,SWP-LK902-24,SWP-LK902-25
SWP-LK902-40,SWP-LK902-41,SWP-LK902-42,SWP-LK902-43,SWP-LK902-44,SWP-LK902-45
SWP-LK902-80,SWP-LK902-81,SWP-LK902-82,SWP-LK902-83,SWP-LK902-84,SWP-LK902-85
SWP-LK903-00,SWP-LK903-01,SWP-LK903-02,SWP-LK903-03,SWP-LK903-04,SWP-LK903-05
SWP-LK903-20,SWP-LK903-21,SWP-LK903-22,SWP-LK903-23,SWP-LK903-24,SWP-LK903-25
SWP-LK903-40,SWP-LK903-41,SWP-LK903-42,SWP-LK903-43,SWP-LK903-44,SWP-LK903-45
SWP-LK903-80,SWP-LK903-81,SWP-LK903-82,SWP-LK903-83,SWP-LK903-84,SWP-LK903-85
SWP-LK904-00,SWP-LK904-01,SWP-LK904-02,SWP-LK904-03,SWP-LK904-04,SWP-LK904-05
SWP-LK904-20,SWP-LK904-21,SWP-LK904-22,SWP-LK904-23,SWP-LK904-24,SWP-LK904-25
SWP-LK904-40,SWP-LK904-41,SWP-LK904-42,SWP-LK904-43,SWP-LK904-44,SWP-LK904-45
SWP-LK904-80,SWP-LK904-81,SWP-LK904-82,SWP-LK904-83,SWP-LK904-84,SWP-LK904-85
