SWP-NAC三相电量集中显示控制仪是一种智能型电参数数据采集模块，可测量三相三线制或三相四线制电路中的三相电流、电压的真有效值，功率、功率因数。其输入为三相电压（0-500V）、三相电流（0-20A），输出为RS-485或RS-232数字信号、4-20mA或0-5V模拟信号，能测量三相电压值、三相电流值、有功功率、无功功率、功率因数CosΦ及各项有功功率、视在功率等。
SWP-NAC三相电量集中显示控制仪可广泛应用于各种工业控制与测量系统及各种集散式/分布式电力监控系统。
SWP-NAC三相电量集中显示控制仪能代替过去的电流、电压、功率、功率因数、电量等变送器及测量这些变送器标准输出信号的输入模块，可大降低系统成本，方便现场布线，提高系统可靠性。其485总线输出与兼容于NuDAM、ADAM等模块的ascii 码指集，使其可与其他厂家的控制模块挂在同一485总线上，且便于计算机编程，使你轻松地构建自己的测控系统。

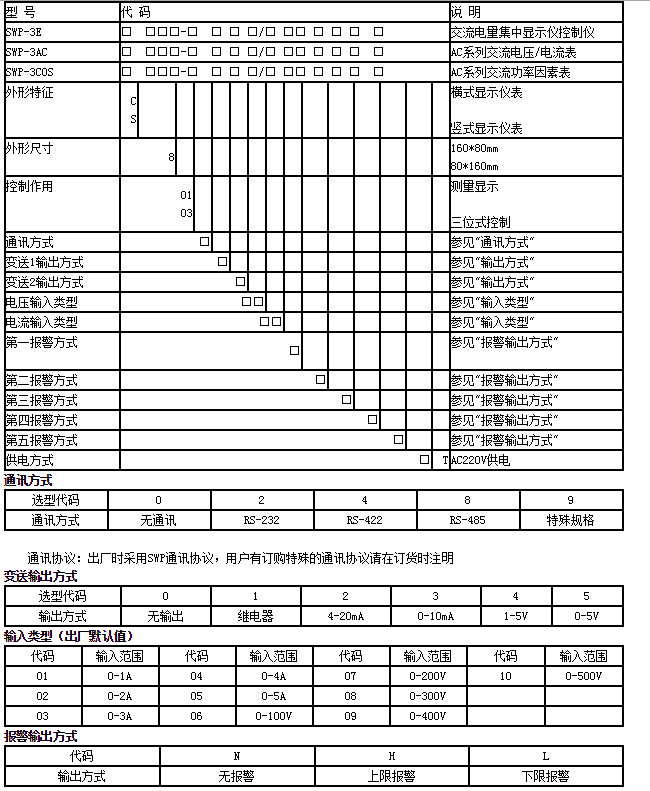

仪表类型
SWP-NAC-3E      ——AC系列三相交流电量集中显示控制仪
SWP-NAC-3AC     ——AC系列三相交流电压/电流表
SWP-NAC-3COS    ——AC系列三相交流功率因数表表

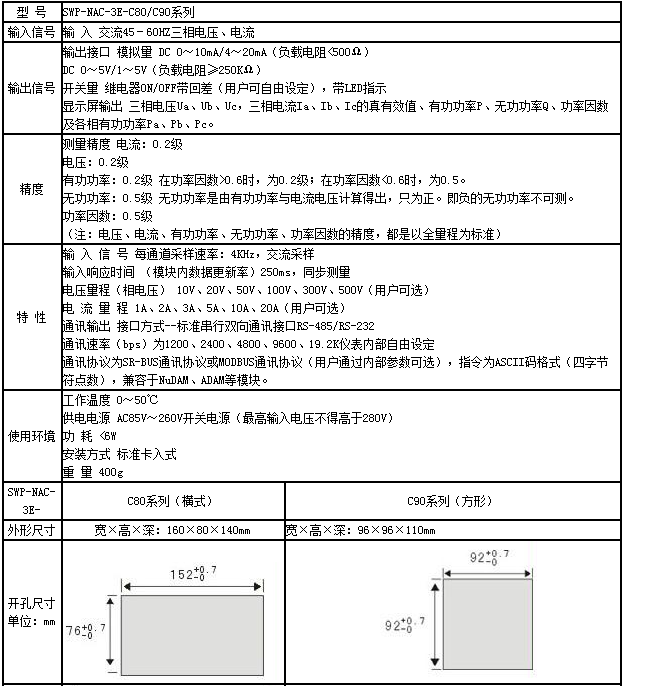

技术参数

SWP-3E-C801-00,SWP-3E-C801-01,SWP-3E-C801-02,SWP-3E-C801-03,SWP-3E-C801-04,SWP-3E-C801-05
SWP-3E-C801-20,SWP-3E-C801-21,SWP-3E-C801-22,SWP-3E-C801-23,SWP-3E-C801-24,SWP-3E-C801-25
SWP-3E-C801-40,SWP-3E-C801-41,SWP-3E-C801-42,SWP-3E-C801-43,SWP-3E-C801-44,SWP-3E-C801-45
SWP-3E-C801-80,SWP-3E-C801-81,SWP-3E-C801-82,SWP-3E-C801-83,SWP-3E-C801-84,SWP-3E-C801-85
SWP-3E-C803-00,SWP-3E-C803-01,SWP-3E-C803-02,SWP-3E-C803-03,SWP-3E-C803-04,SWP-3E-C803-05
SWP-3E-C803-20,SWP-3E-C803-21,SWP-3E-C803-22,SWP-3E-C803-23,SWP-3E-C803-24,SWP-3E-C803-25
SWP-3E-C803-40,SWP-3E-C803-41,SWP-3E-C803-42,SWP-3E-C803-43,SWP-3E-C803-44,SWP-3E-C803-45
SWP-3E-C803-80,SWP-3E-C803-81,SWP-3E-C803-82,SWP-3E-C803-83,SWP-3E-C803-84,SWP-3E-C803-85
SWP-3E-S801-00,SWP-3E-S801-01,SWP-3E-S801-02,SWP-3E-S801-03,SWP-3E-S801-04,SWP-3E-S801-05
SWP-3E-S801-20,SWP-3E-S801-21,SWP-3E-S801-22,SWP-3E-S801-23,SWP-3E-S801-24,SWP-3E-S801-25
SWP-3E-S801-40,SWP-3E-S801-41,SWP-3E-S801-42,SWP-3E-S801-43,SWP-3E-S801-44,SWP-3E-S801-45
SWP-3E-S801-80,SWP-3E-S801-81,SWP-3E-S801-82,SWP-3E-S801-83,SWP-3E-S801-84,SWP-3E-S801-85
SWP-3E-S803-00,SWP-3E-S803-01,SWP-3E-S803-02,SWP-3E-S803-03,SWP-3E-S803-04,SWP-3E-S803-05
SWP-3E-S803-20,SWP-3E-S803-21,SWP-3E-S803-22,SWP-3E-S803-23,SWP-3E-S803-24,SWP-3E-S803-25
SWP-3E-S803-40,SWP-3E-S803-41,SWP-3E-S803-42,SWP-3E-S803-43,SWP-3E-S803-44,SWP-3E-S803-45
SWP-3E-S803-80,SWP-3E-S803-81,SWP-3E-S803-82,SWP-3E-S803-83,SWP-3E-S803-84,SWP-3E-S803-85
SWP-3AC-C801-00,SWP-3AC-C801-01,SWP-3AC-C801-02,SWP-3AC-C801-03,SWP-3AC-C801-04,SWP-3AC-C801-05
SWP-3AC-C801-20,SWP-3AC-C801-21,SWP-3AC-C801-22,SWP-3AC-C801-23,SWP-3AC-C801-24,SWP-3AC-C801-25
SWP-3AC-C801-40,SWP-3AC-C801-41,SWP-3AC-C801-42,SWP-3AC-C801-43,SWP-3AC-C801-44,SWP-3AC-C801-45
SWP-3AC-C801-80,SWP-3AC-C801-81,SWP-3AC-C801-82,SWP-3AC-C801-83,SWP-3AC-C801-84,SWP-3AC-C801-85
SWP-3AC-C803-00,SWP-3AC-C803-01,SWP-3AC-C803-02,SWP-3AC-C803-03,SWP-3AC-C803-04,SWP-3AC-C803-05
SWP-3AC-C803-20,SWP-3AC-C803-21,SWP-3AC-C803-22,SWP-3AC-C803-23,SWP-3AC-C803-24,SWP-3AC-C803-25
SWP-3AC-C803-40,SWP-3AC-C803-41,SWP-3AC-C803-42,SWP-3AC-C803-43,SWP-3AC-C803-44,SWP-3AC-C803-45
SWP-3AC-C803-80,SWP-3AC-C803-81,SWP-3AC-C803-82,SWP-3AC-C803-83,SWP-3AC-C803-84,SWP-3AC-C803-85
SWP-3AC-S801-00,SWP-3AC-S801-01,SWP-3AC-S801-02,SWP-3AC-S801-03,SWP-3AC-S801-04,SWP-3AC-S801-05
SWP-3AC-S801-20,SWP-3AC-S801-21,SWP-3AC-S801-22,SWP-3AC-S801-23,SWP-3AC-S801-24,SWP-3AC-S801-25
SWP-3AC-S801-40,SWP-3AC-S801-41,SWP-3AC-S801-42,SWP-3AC-S801-43,SWP-3AC-S801-44,SWP-3AC-S801-45
SWP-3AC-S801-80,SWP-3AC-S801-81,SWP-3AC-S801-82,SWP-3AC-S801-83,SWP-3AC-S801-84,SWP-3AC-S801-85
SWP-3AC-S803-00,SWP-3AC-S803-01,SWP-3AC-S803-02,SWP-3AC-S803-03,SWP-3AC-S803-04,SWP-3AC-S803-05
SWP-3AC-S803-20,SWP-3AC-S803-21,SWP-3AC-S803-22,SWP-3AC-S803-23,SWP-3AC-S803-24,SWP-3AC-S803-25
SWP-3AC-S803-40,SWP-3AC-S803-41,SWP-3AC-S803-42,SWP-3AC-S803-43,SWP-3AC-S803-44,SWP-3AC-S803-45
SWP-3AC-S803-80,SWP-3AC-S803-81,SWP-3AC-S803-82,SWP-3AC-S803-83,SWP-3AC-S803-84,SWP-3AC-S803-85
SWP-3COS-C801-00,SWP-3COS-C801-01,SWP-3COS-C801-02,SWP-3COS-C801-03,SWP-3COS-C801-04,SWP-3COS-C801-05
SWP-3COS-C801-20,SWP-3COS-C801-21,SWP-3COS-C801-22,SWP-3COS-C801-23,SWP-3COS-C801-24,SWP-3COS-C801-25
SWP-3COS-C801-40,SWP-3COS-C801-41,SWP-3COS-C801-42,SWP-3COS-C801-43,SWP-3COS-C801-44,SWP-3COS-C801-45
SWP-3COS-C801-80,SWP-3COS-C801-81,SWP-3COS-C801-82,SWP-3COS-C801-83,SWP-3COS-C801-84,SWP-3COS-C801-85
SWP-3COS-C803-00,SWP-3COS-C803-01,SWP-3COS-C803-02,SWP-3COS-C803-03,SWP-3COS-C803-04,SWP-3COS-C803-05
SWP-3COS-C803-20,SWP-3COS-C803-21,SWP-3COS-C803-22,SWP-3COS-C803-23,SWP-3COS-C803-24,SWP-3COS-C803-25
SWP-3COS-C803-40,SWP-3COS-C803-41,SWP-3COS-C803-42,SWP-3COS-C803-43,SWP-3COS-C803-44,SWP-3COS-C803-45
SWP-3COS-C803-80,SWP-3COS-C803-81,SWP-3COS-C803-82,SWP-3COS-C803-83,SWP-3COS-C803-84,SWP-3COS-C803-85
SWP-3COS-S801-00,SWP-3COS-S801-01,SWP-3COS-S801-02,SWP-3COS-S801-03,SWP-3COS-S801-04,SWP-3COS-S801-05
SWP-3COS-S801-20,SWP-3COS-S801-21,SWP-3COS-S801-22,SWP-3COS-S801-23,SWP-3COS-S801-24,SWP-3COS-S801-25
SWP-3COS-S801-40,SWP-3COS-S801-41,SWP-3COS-S801-42,SWP-3COS-S801-43,SWP-3COS-S801-44,SWP-3COS-S801-45
SWP-3COS-S801-80,SWP-3COS-S801-81,SWP-3COS-S801-82,SWP-3COS-S801-83,SWP-3COS-S801-84,SWP-3COS-S801-85
SWP-3COS-S803-00,SWP-3COS-S803-01,SWP-3COS-S803-02,SWP-3COS-S803-03,SWP-3COS-S803-04,SWP-3COS-S803-05
SWP-3COS-S803-20,SWP-3COS-S803-21,SWP-3COS-S803-22,SWP-3COS-S803-23,SWP-3COS-S803-24,SWP-3COS-S803-25
SWP-3COS-S803-40,SWP-3COS-S803-41,SWP-3COS-S803-42,SWP-3COS-S803-43,SWP-3COS-S803-44,SWP-3COS-S803-45
SWP-3COS-S803-80,SWP-3COS-S803-81,SWP-3COS-S803-82,SWP-3COS-S803-83,SWP-3COS-S803-84,SWP-3COS-S803-85
