JYB-KO-WPAG,JYB-KO-WPVG,JYB-KO-WHAG,JYB-KO-WPAG-XG,JYB-KO-W,卫生型压力变送器
2017-03-09 21:451047
信息概况
  • 价格：未填
  • 型号： JYB-KO-WPAG,JYB-KO-WPVG,JYB-KO-WHAG,JYB-KO-WPAG-XG,JYB-KO-W,卫生型压力变送器
  • 发货：3天内
发送询价
 JYB-KO-WPAG,JYB-KO-WPVG,JYB-KO-WHAG,JYB-KO-WPAG-XG,JYB-KO-W,卫生型压力变送器
技术参数
量 程 0～3.5MPa内任何量程,最小量程为 5kPa
准确定等级 0.2级
0.5级
介质温度 － 30℃～85℃
环境温度 － 20℃～85℃
供电电压 DC 24V (12V～32V)
负载能力 电流输出型≤500Ω；电压输出型：≥3kΩ
非线性 0.2％F•S
迟滞性与可重复性 0.1％F•S
长期稳定性 0.1％F•S/y
热力零点漂移 0.02％F•S/℃
响应时间 ≤ 50ms
最大工作压力 2倍量程
电气连接 霍斯曼接头 /接线端子
过程连接 M24× 1.5外螺纹 或卡箍式快接法兰
测量介质 与 316L不锈钢兼容介质
外部零件的材料 普通不锈钢 /316L不锈钢
防护等级 IP65（P型）/ IP 54（H型）

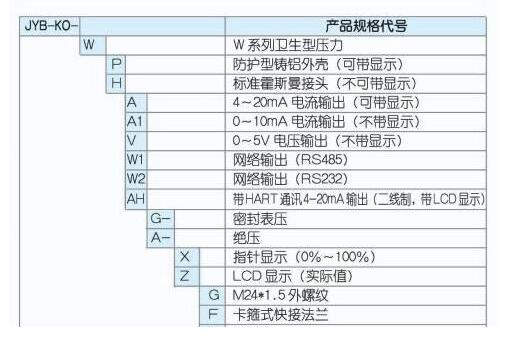

JYB-KO-WPAG,JYB-KO-WPAG,JYB-KO-WPAG,JYB-KO-WPAG,
JYB-KO-WPAA,JYB-KO-WPAA,JYB-KO-WPAA,JYB-KO-WPAA,
JYB-KO-WPA1G,JYB-KO-WPA1G,JYB-KO-WPA1G,JYB-KO-WPA1G,
JYB-KO-WPA1A,JYB-KO-WPA1A,JYB-KO-WPA1A,JYB-KO-WPA1A,
JYB-KO-WPVG,JYB-KO-WPVG,JYB-KO-WPVG,JYB-KO-WPVG,
JYB-KO-WPVA,JYB-KO-WPVA,JYB-KO-WPVA,JYB-KO-WPVA,
JYB-KO-WPW1G,JYB-KO-WPW1G,JYB-KO-WPW1G,JYB-KO-WPW1G,
JYB-KO-WPW1A,JYB-KO-WPW1A,JYB-KO-WPW1A,JYB-KO-WPW1A,
JYB-KO-WPW2G,JYB-KO-WPW2G,JYB-KO-WPW2G,JYB-KO-WPW2G,
JYB-KO-WPW2A,JYB-KO-WPW2A,JYB-KO-WPW2A,JYB-KO-WPW2A,
JYB-KO-WPAHG,JYB-KO-WPAHG,JYB-KO-WPAHG,JYB-KO-WPAHG,
JYB-KO-WPAHA,JYB-KO-WPAHA,JYB-KO-WPAHA,JYB-KO-WPAHA,
JYB-KO-WHAG,JYB-KO-WHAG,JYB-KO-WHAG,JYB-KO-WHAG,
JYB-KO-WHAA,JYB-KO-WHAA,JYB-KO-WHAA,JYB-KO-WHAA,
JYB-KO-WHA1G,JYB-KO-WHA1G,JYB-KO-WHA1G,JYB-KO-WHA1G,
JYB-KO-WHA1A,JYB-KO-WHA1A,JYB-KO-WHA1A,JYB-KO-WHA1A,
JYB-KO-WHVG,JYB-KO-WHVG,JYB-KO-WHVG,JYB-KO-WHVG,
JYB-KO-WHVA,JYB-KO-WHVA,JYB-KO-WHVA,JYB-KO-WHVA,
JYB-KO-WHW1G,JYB-KO-WHW1G,JYB-KO-WHW1G,JYB-KO-WHW1G,
JYB-KO-WHW1A,JYB-KO-WHW1A,JYB-KO-WHW1A,JYB-KO-WHW1A,
JYB-KO-WHW2G,JYB-KO-WHW2G,JYB-KO-WHW2G,JYB-KO-WHW2G,
JYB-KO-WHW2A,JYB-KO-WHW2A,JYB-KO-WHW2A,JYB-KO-WHW2A,
JYB-KO-WHAHG,JYB-KO-WHAHG,JYB-KO-WHAHG,JYB-KO-WHAHG,
JYB-KO-WHAHA,JYB-KO-WHAHA,JYB-KO-WHAHA,JYB-KO-WHAHA,
JYB-KO-WPAG-XG,JYB-KO-WPAG-XF,JYB-KO-WPAG-ZG,JYB-KO-WPAG-ZF,
JYB-KO-WPAA-XG,JYB-KO-WPAA-XF,JYB-KO-WPAA-ZG,JYB-KO-WPAA-ZF,
JYB-KO-WPA1G-XG,JYB-KO-WPA1G-XF,JYB-KO-WPA1G-ZG,JYB-KO-WPA1G-ZF,
JYB-KO-WPA1A-XG,JYB-KO-WPA1A-XF,JYB-KO-WPA1A-ZG,JYB-KO-WPA1A-ZF,
JYB-KO-WPVG-XG,JYB-KO-WPVG-XF,JYB-KO-WPVG-ZG,JYB-KO-WPVG-ZF,
JYB-KO-WPVA-XG,JYB-KO-WPVA-XF,JYB-KO-WPVA-ZG,JYB-KO-WPVA-ZF,
JYB-KO-WPW1G-XG,JYB-KO-WPW1G-XF,JYB-KO-WPW1G-ZG,JYB-KO-WPW1G-ZF,
JYB-KO-WPW1A-XG,JYB-KO-WPW1A-XF,JYB-KO-WPW1A-ZG,JYB-KO-WPW1A-ZF,
JYB-KO-WPW2G-XG,JYB-KO-WPW2G-XF,JYB-KO-WPW2G-ZG,JYB-KO-WPW2G-ZF,
JYB-KO-WPW2A-XG,JYB-KO-WPW2A-XF,JYB-KO-WPW2A-ZG,JYB-KO-WPW2A-ZF,
JYB-KO-WPAHG-XG,JYB-KO-WPAHG-XF,JYB-KO-WPAHG-ZG,JYB-KO-WPAHG-ZF,
JYB-KO-WPAHA-XG,JYB-KO-WPAHA-XF,JYB-KO-WPAHA-ZG,JYB-KO-WPAHA-ZF,
JYB-KO-WHAG-XG,JYB-KO-WHAG-XF,JYB-KO-WHAG-ZG,JYB-KO-WHAG-ZF,
JYB-KO-WHAA-XG,JYB-KO-WHAA-XF,JYB-KO-WHAA-ZG,JYB-KO-WHAA-ZF,
JYB-KO-WHA1G-XG,JYB-KO-WHA1G-XF,JYB-KO-WHA1G-ZG,JYB-KO-WHA1G-ZF,
JYB-KO-WHA1A-XG,JYB-KO-WHA1A-XF,JYB-KO-WHA1A-ZG,JYB-KO-WHA1A-ZF,
JYB-KO-WHVG-XG,JYB-KO-WHVG-XF,JYB-KO-WHVG-ZG,JYB-KO-WHVG-ZF,
JYB-KO-WHVA-XG,JYB-KO-WHVA-XF,JYB-KO-WHVA-ZG,JYB-KO-WHVA-ZF,
JYB-KO-WHW1G-XG,JYB-KO-WHW1G-XF,JYB-KO-WHW1G-ZG,JYB-KO-WHW1G-ZF,
JYB-KO-WHW1A-XG,JYB-KO-WHW1A-XF,JYB-KO-WHW1A-ZG,JYB-KO-WHW1A-ZF,
JYB-KO-WHW2G-XG,JYB-KO-WHW2G-XF,JYB-KO-WHW2G-ZG,JYB-KO-WHW2G-ZF,
JYB-KO-WHW2A-XG,JYB-KO-WHW2A-XF,JYB-KO-WHW2A-ZG,JYB-KO-WHW2A-ZF,
JYB-KO-WHAHG-XG,JYB-KO-WHAHG-XF,JYB-KO-WHAHG-ZG,JYB-KO-WHAHG-ZF,
JYB-KO-WHAHA-XG,JYB-KO-WHAHA-XF,JYB-KO-WHAHA-ZG,JYB-KO-WHAHA-ZF,
