额定载荷

t

0. 5/1/1.5/2/2.5/3/5/10

Klb

1/1.5/2/2.5/3/4/5/7.5/10/20

精度

C2

C3

C4

A5M

认证

OIML
R60 C3

OIML
R60 C4

III 5000
多只

IIIL 10000
多只

最大检定分度数

n max

2000

3000

4000

5000

5000

10000

最小检定分度值

v min

Emax/5000

Emax/10000

Emax/14000

Emax/18000

Emax/15000

Emax/10000

综合误差

(%FS)

≤±0.030

≤±0.020

≤±0.018

≤±0.010

≤±0.026

≤±0.050

蠕变

(%FS/30min)

≤±0.024

≤±0.016

≤±0.012

≤±0.010

≤±0.017

≤±0.040

温度对输出灵敏度的影响

(%FS/10℃)

≤±0.017

≤±0.011

≤±0.009

≤±0.008

≤±0.013

温度对零点输出的影响

(%FS/10℃)

≤±0.023

≤±0.015

≤±0.010

≤±0.007

≤±0.014

≤±0.020

输出灵敏度

(mv/v)

3.0±0.003 2.0±0.002

输入阻抗

(Ω)

350±3.5

输出阻抗

(Ω)

351±2

绝缘阻抗

(MΩ)

≥5000(100VDC)

零点输出

(%FS)

±1.0

温度补偿范围

(℃)

-10～+40

允许使用温度范围

(℃)

-35～+70

推荐激励电压

(V)

5～12(DC)

最大激励电压

(V)

18(DC)

安全过载范围

(%FS)

150

极限过载范围

(%FS)

300

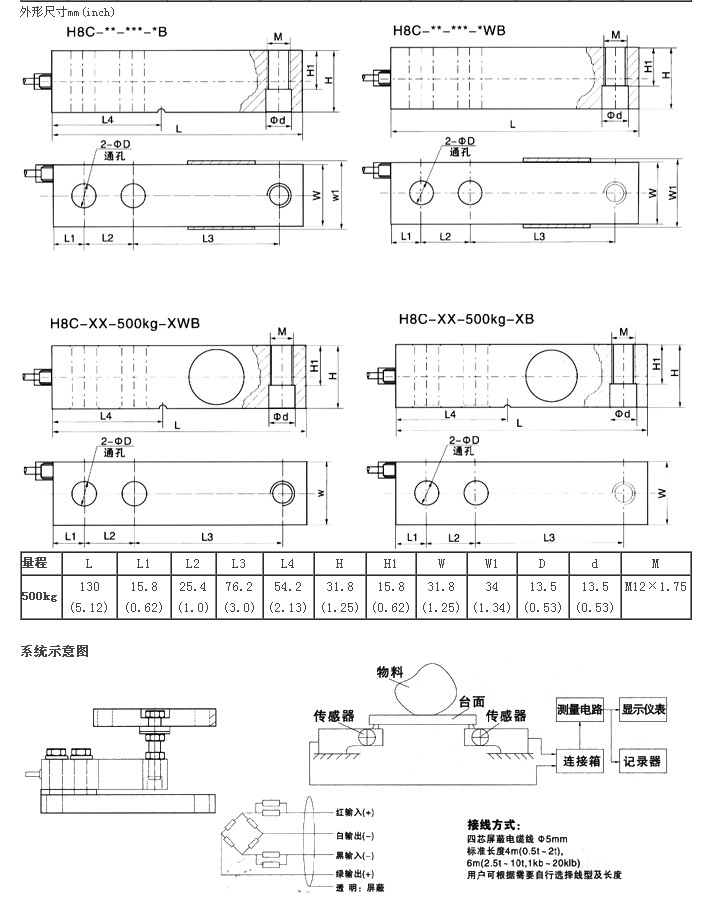

L

L1

L2

L3

L4

H

H1

W

W1

D

d

M

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

54.2
(2.13)

31.8
(1.25)

15.8
(0.62)

31.8
(1.25)

34
(1.34)

13.5
(0.53)

13.5
(0.53)

M12×1.75

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

54.2
(2.13)

31.8
(1.25)

15.8
(0.62)

31.8
(1.25)

34
(1.34)

13.5
(0.53)

13.5
(0.53)

11/2－20UNF

5KSE

130
(5.12)

15.8
(0.62)

25.4
(1.0)

76.2
(3.0)

54.2
(2.13)

31.8
(1.25)

15.8
(0.62)

31.8
(1.25)

34
(1.34)

13.5
(0.53)

13.5
(0.53)

1/2－21UNF

2.5～5t

171.5
(6.75)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

77.2
(3.04)

38.1
(1.5)

18.8
(0.74)

38.1
(1.5)

40
(1.57)

19.8
(0.78)

19.8
(0.78)

M18×1.5

5K～10K

171.5
(6.75)

19.1
(0.75)

38.1
(1.5)

95.3
(3.75)

77.2
(3.04)

38.1
(1.5)

18.8
(0.74)

38.1
(1.5)

40
(1.57)

19.8
(0.78)

19.8
(0.78)

3/4－16UNF

222.3
(8.75)

25.4
(1.0)

50.8
(2.0)

120.7
(4.75)

101.6
(4)

50.8
(2.0)

25.4
(1.0)

50.8
(2.0)

52.4
(2.06)

26.9
(1.06)

26
(1.02)

M24×2

20K

222.3
(8.75)

25.4
(1.0)

50.8
(2.0)

120.7
(4.75)

101.6
(4)

50.8
(2.0)

25.4
(1.0)

50.8
(2.0)

52.4
(2.06)

26.9
(1.06)

26
(1.02)

1－12UNF
