B3G-C3-0.025t-6B,B3G-C3-0.05t-6B,B3G-C3-10t-6B,B3G-C3-20K-6YB,B3G,称重传感器
◆不锈钢材料，S型结构，胶密，拉向或压向承载。
◆防护等级IP67
◆适用于吊钩秤、机改秤、料斗秤及各类电子称重设备。
推荐选择型号：
|
xxkg
|
C3/A5S/B10S
|
B3G-xx-xxkg-6B
|
|
xxt
|
C3/A5S/B10S
|
B3G-xx-xxt-6B
|
|
xxlb
|
A5S/B10S
|
B3G-xx-xx-6YB
|
|
xxklb
|
A5S/B10S
|
B3G-xx-xxK-6YB
|
|
20klb
|
C3
|
B3G-C3-20K-6YB
|
|
50kg-10t通过OIML C3级认证
50kg-7.5t(50lb-15klb)通过NTEP A5S/B10S级认证
|
技术指标
|
额定载荷
|
t
|
0.025/0.05/0.1/0.15/0.25/0.5/1/2.5/5/7.5/10
|
|
lb
|
50/75/100/150/200/250/300/500/750/1k/1.5k/2k/2.5k/3k/5k/7.5k/10k/15k/20k
|
|
精度
|
|
C3
|
C4
|
A5M
|
B10M
|
| 认证 |
|
|
OIML R60 C4
|
III 5000多只
|
III 10000多只
|
|
最大检定分度数
|
n max
|
3000
|
4000
|
5000
|
10000
|
|
最小检定分度值
|
v min
|
Emax/10000
|
Emax/14000
|
Emax/15000
|
Emax/10000
|
|
综合误差
|
(%FS)
|
≤±0.020
|
≤±0.018
|
≤±0.018
|
≤±0.035
|
|
蠕变
|
(%FS/30min)
|
≤±0.016
|
≤±0.012
|
≤±0.012
|
≤±0.030
|
|
温度对输出灵敏度的影响
|
(%FS/10℃)
|
≤±0.011
|
≤±0.009
|
≤±0.009
|
≤±0.030
|
|
温度对零点输出的影响
|
(%FS/10℃)
|
≤±0.015
|
≤±0.010
|
≤±0.010
|
≤±0.030
|
|
输出灵敏度
|
(mv/v)
|
3.0±0.008
|
|
输入阻抗
|
(Ω)
|
430±60
|
|
输出阻抗
|
(Ω)
|
351±2
|
|
绝缘阻抗
|
(MΩ)
|
≥5000(50VDC)
|
|
零点输出
|
(%FS)
|
≤±1.0
|
|
温度补偿范围
|
(℃)
|
-10～+40
|
|
允许使用温度范围
|
(℃)
|
-35～+70
|
|
推荐激励电压
|
(V)
|
5～12(DC)
|
|
最大激励电压
|
(V)
|
18(DC)
|
|
安全过载范围
|
(%FS)
|
150
|
|
极限过载范围
|
(%FS)
|
300
|
| ATEX等级（可选） |
|
II 1G Ex ia II 1C T4
|
II 1D Ex iaD20 T73℃
|
II 3G Ex nL II C T4
|
| 注：B9D无OIML/NTEP认证. |
|

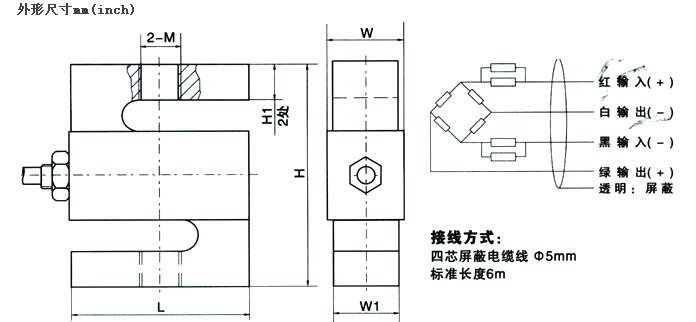

量程
|
L
|
H
|
W
|
W1
|
M
|
H1
|
|
25㎏～100㎏
|
50.8(2.0)
|
60.96(2.4)
|
11.68(0.46)
|
15.06(0.59)
|
M8
|
8.89(0.35)
|
|
50lb～300lb
|
1/4-28UNF
|
|
150㎏～500㎏
|
50.8(2.0)
|
60.96(2.4)
|
18.03(0.71)
|
21.4(0.84)
|
M12
|
|
500lb～1.5Klb
|
1/2-20UNF
|
|
1t
|
50.8(2.0)
|
60.96(2.4)
|
24.38(0.96)
|
27.76(1.09)
|
M12
|
|
2,2.5Klb
|
1/2-20UNF
|
|
2.5t
|
76.2(3.0)
|
99.06(3.9)
|
24.38(0.96)
|
27.76(1.09)
|
M20×1.5
|
13.97(0.55)
|
|
3Klb
|
1/2-20UNF
|
|
5klb
|
3/4-16UNF
|
|
5t
|
74.68(2.94)
|
99.06(3.9)
|
30.74(1.21)
|
24.12(1.34)
|
M20×1.5
|
20(0.79)
|
|
10Klb
|
3/4-16UNF
|
|
7.5t
|
87.38(3.44)
|
139.7(5.5)
|
37.08(1.46)
|
40.46(1.59)
|
M24×2
|
27.5(1.08)
|
|
15Klb
|
1-14UNS
|
|
10t
|
112.78(4.44)
|
177.8(7.0)
|
42.93(1.69)
|
46.31(1.82)
|
M30×2
|
39.9(1.57)
|
|
20Klb
|
5/4-12UNF
|
B3G-C3-0.025t-6B,B3G-C3-0.05t-6B,B3G-C3-0.1t-6B,B3G-C3-0.15t-6B,B3G-C3-0.25t-6B,
B3G-C3-0.5t-6B,B3G-C3-1t-6B,B3G-C3-2.5t-6B,B3G-C3-5t-6B,B3G-C3-7.5t-6B,B3G-C3-10t-6B,
B3G-C3-20K-6YB,
