DSLZQ-T20*30-4-4,DSLZQ-T30*35-5-12,DSLZQ-T40*55-20-20,DSLZQ-T,十字滑块式弹性联轴器
DSLZQ-T系列十字滑块式弹性联轴器特点如下：
1．胶体材料采用进口PA66，具有良好的耐磨、耐腐蚀性和电气绝缘性
2．滑动式设计更有效的补偿径向和角向偏差
3．可拆设计、便于安装
4．金属部分采用高级高强度铝合金复合材料
5．适用于中低速运动环境，还适用于高速下运动
联轴器应用行业领域如下：
1、雕铣机 2、 雕刻机 3、激光机 4、 造纸机械
5、印刷机械 6、包装机械 7、旋转编码器 8、喷涂设备
9、打标机 10、木工机械 11、铝型材设备 12、纺织机械
13、SMT机械 14、染整机械 15、塑料机械 16、电子自动化设备
17. 电梯 18、机电设备 19、砂光机械 20、风力发电设备
21、游乐设施 22、制管机械 23、弯管机械 24、打圈机
25、涂布机械 26、门窗机械 27、电线电缆机械
28、服装机械 29、水力发电设备等

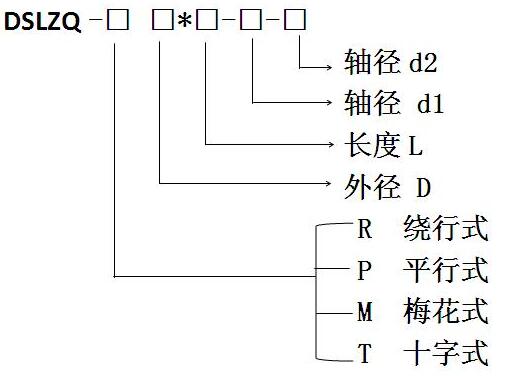

| 型号规格 |
外径(D) |
长度(L) |
轴径d1尺寸 |
轴径d2尺寸 |
长度(L1) |
长度(L2) |
长度(L3) |
固定螺丝 |
额定 扭矩 |
容许轴向偏差 |
最高 转速 |
| DSLZQ-T20*30-4-4 |
Φ20 |
L30 |
Φ4 |
Φ4 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-4-6 |
Φ20 |
L30 |
Φ4 |
Φ6 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-4-8 |
Φ20 |
L30 |
Φ4 |
Φ8 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-4-10 |
Φ20 |
L30 |
Φ4 |
Φ10 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-5-5 |
Φ20 |
L30 |
Φ5 |
Φ5 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-5-8 |
Φ20 |
L30 |
Φ5 |
Φ8 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-5-10 |
Φ20 |
L30 |
Φ5 |
Φ10 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-6-6 |
Φ20 |
L30 |
Φ6 |
Φ6 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-6-8 |
Φ20 |
L30 |
Φ6 |
Φ8 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-6-10 |
Φ20 |
L30 |
Φ6 |
Φ10 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-8-8 |
Φ20 |
L30 |
Φ8 |
Φ8 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-8-10 |
Φ20 |
L30 |
Φ8 |
Φ10 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| DSLZQ-T20*30-10-10 |
Φ20 |
L30 |
Φ10 |
Φ10 |
L10.5 |
L9 |
L5.3 |
M4 |
1.3 |
±0.2 |
7000 |
| |
|
|
|
|
|
|
|
|
|
|
|
| DSLZQ-T30*35-5-5 |
Φ30 |
L35 |
Φ5 |
Φ5 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-5-8 |
Φ30 |
L35 |
Φ5 |
Φ8 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-5-10 |
Φ30 |
L35 |
Φ5 |
Φ10 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-5-12 |
Φ30 |
L35 |
Φ5 |
Φ12 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-5-15 |
Φ30 |
L35 |
Φ5 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-6-6 |
Φ30 |
L35 |
Φ6 |
Φ6 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-6-8 |
Φ30 |
L35 |
Φ6 |
Φ8 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-6-10 |
Φ30 |
L35 |
Φ6 |
Φ10 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-6-12 |
Φ30 |
L35 |
Φ6 |
Φ12 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-6-15 |
Φ30 |
L35 |
Φ6 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-8-8 |
Φ30 |
L35 |
Φ8 |
Φ8 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-8-10 |
Φ30 |
L35 |
Φ8 |
Φ10 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-8-12 |
Φ30 |
L35 |
Φ8 |
Φ12 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-8-15 |
Φ30 |
L35 |
Φ8 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-8-15 |
Φ30 |
L35 |
Φ8 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-10-10 |
Φ30 |
L35 |
Φ10 |
Φ10 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-10-12 |
Φ30 |
L35 |
Φ10 |
Φ12 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-10-15 |
Φ30 |
L35 |
Φ10 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-12-12 |
Φ30 |
L35 |
Φ12 |
Φ12 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-12-15 |
Φ30 |
L35 |
Φ12 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| DSLZQ-T30*35-15-15 |
Φ30 |
L35 |
Φ15 |
Φ15 |
L11.75 |
L11.5 |
L5.8 |
M4 |
1.7 |
±0.2 |
5000 |
| |
|
|
|
|
|
|
|
|
|
|
|
| DSLZQ-T40*55-10-10 |
Φ40 |
L55 |
Φ10 |
Φ10 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-10-12 |
Φ40 |
L55 |
Φ10 |
Φ12 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-10-15 |
Φ40 |
L55 |
Φ10 |
Φ15 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-10-18 |
Φ40 |
L55 |
Φ10 |
Φ18 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-10-20 |
Φ40 |
L55 |
Φ10 |
Φ20 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-12-12 |
Φ40 |
L55 |
Φ12 |
Φ12 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-12-15 |
Φ40 |
L55 |
Φ12 |
Φ15 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-12-18 |
Φ40 |
L55 |
Φ12 |
Φ18 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-12-20 |
Φ40 |
L55 |
Φ12 |
Φ20 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-15-15 |
Φ40 |
L55 |
Φ15 |
Φ15 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-15-18 |
Φ40 |
L55 |
Φ15 |
Φ18 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-15-20 |
Φ40 |
L55 |
Φ15 |
Φ20 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-18-18 |
Φ40 |
L55 |
Φ18 |
Φ18 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-18-20 |
Φ40 |
L55 |
Φ18 |
Φ20 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
| DSLZQ-T40*55-20-20 |
Φ40 |
L55 |
Φ20 |
Φ20 |
L20 |
L15 |
L10.1 |
M5 |
7 |
±0.2 |
3600 |
