KH型穿孔电流变送器的功能与特征

用途：将被测交流电流信号直接穿孔输入,隔离变送成模拟信号,无需经电流互感器。

测量：单相交流电流

输入：10Aac,50Aac,100Aac等

输出：4~20mAdc,0~10Vdc等模拟量信号

电源：DC24V或DC12V或DC15V

安装：35mm标准导轨、底座螺钉安装

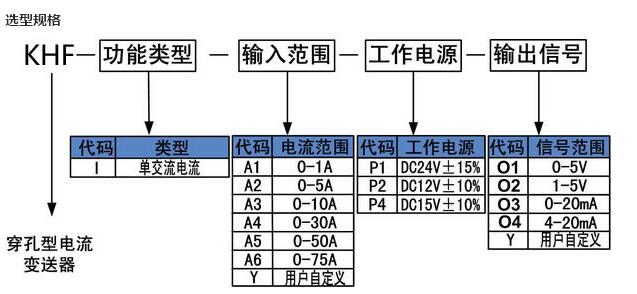

常用规格实例

型号: KHF-I-A5-P1-O4

精度: ±0.2%

输入: 0~50Aac, 50Hz

输出: 4~20mAdc

电源: DC24V

描述: 此型号为单相电流变送器,0~50Aac直接穿孔输入,输出4~20mAdc, 工作电源DC24V.

KHF-I-A1-P1-O1,KHF-I-A1-P1-O2,KHF-I-A1-P1-O3,KHF-I-A1-P1-O4,KHF-I-A1-P1-Y,
KHF-I-A1-P2-O1,KHF-I-A1-P2-O2,KHF-I-A1-P2-O3,KHF-I-A1-P2-O4,KHF-I-A1-P2-Y,
KHF-I-A1-P4-O1,KHF-I-A1-P4-O2,KHF-I-A1-P4-O3,KHF-I-A1-P4-O4,KHF-I-A1-P4-Y,
KHF-I-A2-P1-O1,KHF-I-A2-P1-O2,KHF-I-A2-P1-O3,KHF-I-A2-P1-O4,KHF-I-A2-P1-Y,
KHF-I-A2-P2-O1,KHF-I-A2-P2-O2,KHF-I-A2-P2-O3,KHF-I-A2-P2-O4,KHF-I-A2-P2-Y,
KHF-I-A2-P4-O1,KHF-I-A2-P4-O2,KHF-I-A2-P4-O3,KHF-I-A2-P4-O4,KHF-I-A2-P4-Y,
KHF-I-A3-P1-O1,KHF-I-A3-P1-O2,KHF-I-A3-P1-O3,KHF-I-A3-P1-O4,KHF-I-A3-P1-Y,
KHF-I-A3-P2-O1,KHF-I-A3-P2-O2,KHF-I-A3-P2-O3,KHF-I-A3-P2-O4,KHF-I-A3-P2-Y,
KHF-I-A3-P4-O1,KHF-I-A3-P4-O2,KHF-I-A3-P4-O3,KHF-I-A3-P4-O4,KHF-I-A3-P4-Y,
KHF-I-A4-P1-O1,KHF-I-A4-P1-O2,KHF-I-A4-P1-O3,KHF-I-A4-P1-O4,KHF-I-A4-P1-Y,
KHF-I-A4-P2-O1,KHF-I-A4-P2-O2,KHF-I-A4-P2-O3,KHF-I-A4-P2-O4,KHF-I-A4-P2-Y,
KHF-I-A4-P4-O1,KHF-I-A4-P4-O2,KHF-I-A4-P4-O3,KHF-I-A4-P4-O4,KHF-I-A4-P4-Y,
KHF-I-A5-P1-O1,KHF-I-A5-P1-O2,KHF-I-A5-P1-O3,KHF-I-A5-P1-O4,KHF-I-A5-P1-Y,
KHF-I-A5-P2-O1,KHF-I-A5-P2-O2,KHF-I-A5-P2-O3,KHF-I-A5-P2-O4,KHF-I-A5-P2-Y,
KHF-I-A5-P4-O1,KHF-I-A5-P4-O2,KHF-I-A5-P4-O3,KHF-I-A5-P4-O4,KHF-I-A5-P4-Y,
KHF-I-A6-P1-O1,KHF-I-A6-P1-O2,KHF-I-A6-P1-O3,KHF-I-A6-P1-O4,KHF-I-A6-P1-Y,
KHF-I-A6-P2-O1,KHF-I-A6-P2-O2,KHF-I-A6-P2-O3,KHF-I-A6-P2-O4,KHF-I-A6-P2-Y,
KHF-I-A6-P4-O1,KHF-I-A6-P4-O2,KHF-I-A6-P4-O3,KHF-I-A6-P4-O4,KHF-I-A6-P4-Y,
KHF-I-Y-P1-O1,KHF-I-Y-P1-O2,KHF-I-Y-P1-O3,KHF-I-Y-P1-O4,KHF-I-Y-P1-Y,
KHF-I-Y-P2-O1,KHF-I-Y-P2-O2,KHF-I-Y-P2-O3,KHF-I-Y-P2-O4,KHF-I-Y-P2-Y,
KHF-I-Y-P4-O1,KHF-I-Y-P4-O2,KHF-I-Y-P4-O3,KHF-I-Y-P4-O4,KHF-I-Y-P4-Y,
