PT04-M5,PT06-M5,PT08-01,PT10-01,PT12-01,PT16-03,PT04-M6,PT06-M6,快插式管接头
PT04-01,PT04-02,PT04-03,PT06-01,PT06-02,PT06-03,PT06-04,PT08-02,PT08-03,
PT08-04,PT10-02,PT10-03,PT10-04,PT12-02,PT12-03,PT12-04,PT16-04,
| Model |
￠D |
￠P |
T |
L |
E |
A |
B |
H(Hex) |
ORIFICE |
WEIGHT(g) |
BOX(EA) |
| PT04-M5 |
4 |
10.5 |
M5*0.8p |
20.5 |
18.5 |
4 |
14.8 |
10 |
2.5 |
10 |
100 |
| PT04-M6 |
4 |
10.5 |
M6*1.0p |
20.6 |
18.5 |
4.1 |
14.8 |
10 |
3 |
10 |
100 |
| PT04-01 |
4 |
10.5 |
R 1/8 |
24.5 |
18.5 |
8 |
14.8 |
10 |
3 |
11 |
100 |
| PT04-02 |
4 |
10.5 |
R 1/4 |
26.5 |
18.5 |
10 |
14.8 |
14 |
3 |
17 |
100 |
| PT04-03 |
4 |
10.5 |
R 3/8 |
27.5 |
18.5 |
11 |
14.8 |
17 |
3 |
26 |
50 |
| PT06-M5 |
6 |
12.5 |
M5*0.8p |
22.5 |
20.3 |
4 |
16.4 |
12 |
2.5 |
15 |
50 |
| PT06-M6 |
6 |
12.5 |
M6*1.0p |
22.6 |
20.3 |
4.1 |
16.4 |
12 |
3 |
15 |
50 |
| PT06-01 |
6 |
12.5 |
R 1/8 |
26.5 |
20.3 |
8 |
16.4 |
12 |
4 |
17 |
50 |
| PT06-02 |
6 |
12.5 |
R 1/4 |
29.5 |
20.3 |
10 |
16.4 |
14 |
4 |
21 |
50 |
| PT06-03 |
6 |
12.5 |
R 3/8 |
30.5 |
20.3 |
11 |
16.4 |
17 |
4 |
29 |
50 |
| PT06-04 |
6 |
12.5 |
R 1/2 |
33.5 |
20.3 |
14 |
16.4 |
21 |
4 |
56 |
25 |
| PT08-01 |
8 |
15 |
R 1/8 |
28 |
22.6 |
8 |
18.3 |
14 |
6 |
21 |
50 |
| PT08-02 |
8 |
15 |
R 1/4 |
31 |
22.6 |
10 |
18.3 |
14 |
6 |
24 |
50 |
| PT08-03 |
8 |
15 |
R 3/8 |
32 |
22.6 |
11 |
18.3 |
17 |
6 |
31 |
50 |
| PT08-04 |
8 |
15 |
R 1/2 |
35 |
22.6 |
14 |
18.3 |
21 |
6 |
54 |
25 |
| PT10-01 |
10 |
17.5 |
R 1/8 |
28.5 |
25.2 |
8 |
20.2 |
17 |
6 |
33 |
25 |
| PT10-02 |
10 |
17.5 |
R 1/4 |
31.5 |
25.2 |
10 |
20.2 |
17 |
8 |
35 |
25 |
| PT10-03 |
10 |
17.5 |
R 3/8 |
32.5 |
25.2 |
11 |
20.2 |
17 |
8 |
36 |
25 |
| PT10-04 |
10 |
17.5 |
R 1/2 |
35.5 |
25.5 |
14 |
20.2 |
21 |
8 |
60 |
25 |
| PT12-01 |
12 |
20.5 |
R 1/8 |
32.4 |
28.7 |
8 |
22.9 |
19 |
6 |
50 |
25 |
| PT12-02 |
12 |
20.5 |
R 1/4 |
34.4 |
28.7 |
10 |
22.9 |
19 |
9 |
47 |
25 |
| PT12-03 |
12 |
20.5 |
R 3/8 |
35.4 |
28.7 |
11 |
22.9 |
19 |
10 |
50 |
25 |
| PT12-04 |
12 |
20.5 |
R 1/2 |
38.4 |
28.7 |
14 |
22.9 |
21 |
10 |
60 |
20 |
| PT16-03 |
16 |
25.5 |
R 3/8 |
42.8 |
32.8 |
11 |
24.1 |
24 |
10 |
86 |
12 |
| PT16-04 |
16 |
25.5 |
R 1/2 |
45.8 |
32.8 |
14 |
24.1 |
24 |
13 |
94 |
12 |

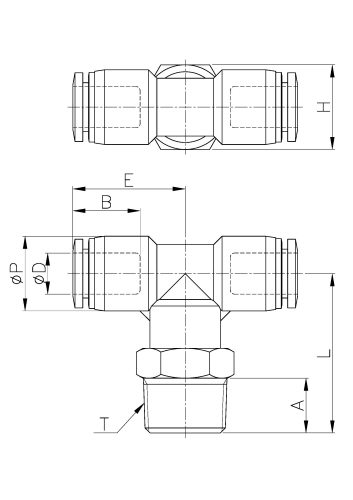

外形尺寸
