PLLP04-M5,PLLP06-M5,PLLP08-01,PLLP10-01,PLLP12-01,PLLP04-M6,PLLP06-M6,快插式管接头
PLLP04-01,PLLP04-02,PLLP04-03,PLLP06-01,PLLP06-02,PLLP06-03,PLLP06-04,PLLP08-02,
PLLP08-03,PLLP08-04,PLLP10-02,PLLP10-03,PLLP10-04,PLLP12-02,PLLP12-03,PLLP12-04,
| Model |
￠D |
￠P |
T |
L |
E |
A |
B |
H(Hex) |
ORIFICE |
WEIGHT(g) |
BOX(EA) |
| PLLP 04-M5 |
4 |
10.5 |
M5*0.8p |
32.5 |
18.5 |
4 |
14.8 |
10 |
2.5 |
5.6 |
50 |
| PLLP 04-M6 |
4 |
10.5 |
M6*1.0p |
32.6 |
18.5 |
4.1 |
14.8 |
10 |
3 |
8 |
50 |
| PLLP 04-01 |
4 |
10.5 |
R 1/8 |
36.5 |
18.5 |
8 |
14.8 |
10 |
3 |
9.9 |
50 |
| PLLP 04-02 |
4 |
10.5 |
R 1/4 |
38.5 |
18.5 |
10 |
14.8 |
14 |
3 |
14.9 |
50 |
| PLLP 04-03 |
4 |
10.5 |
R 3/8 |
39.5 |
18.5 |
11 |
14.8 |
17 |
3 |
23.7 |
50 |
| PLLP 06-M5 |
6 |
12.5 |
M5*0.8p |
36.5 |
20.3 |
4 |
16.4 |
12 |
2.5 |
7.1 |
50 |
| PLLP 06-M6 |
6 |
12.5 |
M6*1.0p |
36.6 |
20.3 |
4.1 |
16.4 |
12 |
3 |
11.8 |
50 |
| PLLP 06-01 |
6 |
12.5 |
R 1/8 |
40.5 |
20.3 |
8 |
16.4 |
12 |
4 |
13.8 |
50 |
| PLLP 06-02 |
6 |
12.5 |
R 1/4 |
43.5 |
20.3 |
10 |
16.4 |
14 |
4 |
18.9 |
50 |
| PLLP 06-03 |
6 |
12.5 |
R 3/8 |
44.5 |
20.3 |
11 |
16.4 |
17 |
4 |
26.1 |
50 |
| PLLP 06-04 |
6 |
12.5 |
R 1/2 |
47.5 |
20.3 |
14 |
16.4 |
21 |
4 |
40.3 |
25 |
| PLLP 08-01 |
8 |
14.8 |
R 1/8 |
44 |
22.9 |
8 |
18.3 |
14 |
6 |
18 |
50 |
| PLLP 08-02 |
8 |
14.8 |
R 1/4 |
47 |
22.9 |
10 |
18.3 |
14 |
6 |
20.9 |
50 |
| PLLP 08-03 |
8 |
14.8 |
R 3/8 |
48 |
22.9 |
11 |
18.3 |
17 |
6 |
27.7 |
25 |
| PLLP 08-04 |
8 |
14.8 |
R 1/2 |
51 |
22.9 |
14 |
18.3 |
21 |
6 |
42.7 |
25 |
| PLLP 10-01 |
10 |
17.5 |
R 1/8 |
47.5 |
24.6 |
8 |
20.2 |
17 |
6 |
27.7 |
25 |
| PLLP 10-02 |
10 |
17.5 |
R 1/4 |
50.5 |
24.6 |
10 |
20.2 |
17 |
8 |
29.6 |
25 |
| PLLP 10-03 |
10 |
17.5 |
R 3/8 |
51.5 |
24.6 |
11 |
20.2 |
17 |
8 |
31.7 |
25 |
| PLLP 10-04 |
10 |
17.5 |
R 1/2 |
54.5 |
24.6 |
14 |
20.2 |
22 |
8 |
50.5 |
25 |
| PLLP 12-01 |
12 |
20.5 |
R 1/8 |
54.4 |
28.7 |
8 |
22.9 |
19 |
6 |
42.1 |
25 |
| PLLP 12-02 |
12 |
20.5 |
R 1/4 |
56.4 |
28.7 |
10 |
22.9 |
19 |
9 |
38.3 |
25 |
| PLLP 12-03 |
12 |
20.5 |
R 3/8 |
57.4 |
28.7 |
11 |
22.9 |
19 |
10 |
42 |
25 |
| PLLP 12-04 |
12 |
20.5 |
R 1/2 |
60.4 |
28.7 |
14 |
22.9 |
21 |
10 |
51.4 |
25 |

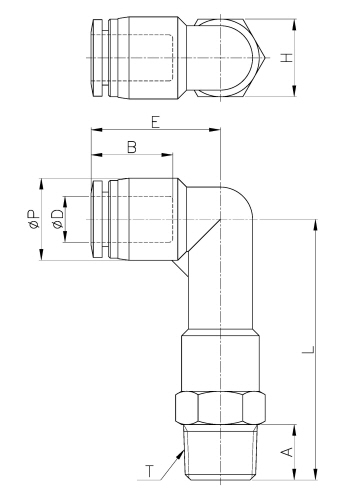

外形尺寸
