PL04-M5,PL06-M5,PL08-01,PL10-01,PL12-01,PL14-03,PL16-03,PL04-M6,快插式管接头
PL04-01,PL04-02,PL04-03,PL06-M6,PL06-01,PL06-02,PL06-03,PL06-04,PL08-02,PL08-03,
PL08-04,PL10-02,PL10-03,PL10-04,PL12-02,PL12-03,PL12-04,PL14-04,PL16-04,
| Model |
￠D |
￠P |
T |
L |
E |
A |
B |
H(Hex) |
ORIFICE |
WEIGHT(g) |
BOX(EA) |
| PL04-M5 |
4 |
10.5 |
M5*0.8p |
20.5 |
18.5 |
4 |
14.8 |
10 |
2.5 |
6 |
100 |
| PL04-M6 |
4 |
10.5 |
M6*1.0p |
20.6 |
18.5 |
4.1 |
14.8 |
10 |
3 |
8 |
100 |
| PL04-01 |
4 |
10.5 |
R 1/8 |
24.5 |
18.5 |
8 |
14.8 |
10 |
3 |
10 |
100 |
| PL04-02 |
4 |
10.5 |
R 1/4 |
26.5 |
18.5 |
10 |
14.8 |
14 |
3 |
15 |
100 |
| PL04-03 |
4 |
10.5 |
R 3/8 |
27.5 |
18.5 |
11 |
14.8 |
17 |
3 |
26 |
50 |
| PL06-M5 |
6 |
12.5 |
M5*0.8p |
22.5 |
20.3 |
4 |
16.4 |
12 |
2.5 |
7 |
100 |
| PL06-M6 |
6 |
12.5 |
M6*1.0p |
22.6 |
20.3 |
4.1 |
16.4 |
12 |
3 |
12 |
100 |
| PL06-01 |
6 |
12.5 |
R 1/8 |
26.5 |
20.3 |
8 |
16.4 |
12 |
4 |
13 |
100 |
| PL06-02 |
6 |
12.5 |
R 1/4 |
29.5 |
20.3 |
10 |
16.4 |
14 |
4 |
19 |
100 |
| PL06-03 |
6 |
12.5 |
R 3/8 |
30.5 |
20.3 |
11 |
16.4 |
17 |
4 |
27 |
50 |
| PL06-04 |
6 |
12.5 |
R 1/2 |
33.5 |
20.3 |
14 |
16.4 |
21 |
4 |
39 |
50 |
| PL08-01 |
8 |
14.8 |
R 1/8 |
28 |
22.9 |
8 |
18.3 |
14 |
6 |
18 |
50 |
| PL08-02 |
8 |
14.8 |
R 1/4 |
31 |
22.9 |
10 |
18.3 |
14 |
6 |
22 |
50 |
| PL08-03 |
8 |
14.8 |
R 3/8 |
32 |
22.9 |
11 |
18.3 |
17 |
6 |
27 |
50 |
| PL08-04 |
8 |
14.8 |
R 1/2 |
35 |
22.9 |
14 |
18.3 |
21 |
6 |
43 |
50 |
| PL10-01 |
10 |
17.5 |
R 1/8 |
28.5 |
24.6 |
8 |
20.2 |
17 |
6 |
26 |
50 |
| PL10-02 |
10 |
17.5 |
R 1/4 |
31.5 |
24.6 |
10 |
20.2 |
17 |
8 |
28 |
50 |
| PL10-03 |
10 |
17.5 |
R 3/8 |
32.5 |
24.6 |
11 |
20.2 |
17 |
8 |
30 |
50 |
| PL10-04 |
10 |
17.5 |
R 1/2 |
35.5 |
24.6 |
14 |
20.2 |
21 |
8 |
48 |
25 |
| PL12-01 |
12 |
20.5 |
R 1/8 |
32.4 |
28.7 |
8 |
22.9 |
19 |
6 |
42 |
25 |
| PL12-02 |
12 |
20.5 |
R 1/4 |
34.4 |
28.7 |
10 |
22.9 |
19 |
9 |
40 |
25 |
| PL12-03 |
12 |
20.5 |
R 3/8 |
35.4 |
28.7 |
11 |
22.9 |
19 |
10 |
43 |
25 |
| PL12-04 |
12 |
20.5 |
R 1/2 |
38.4 |
28.7 |
14 |
22.9 |
21 |
10 |
52 |
25 |
| PL14-03 |
14 |
23 |
R 3/8 |
38 |
31.4 |
11 |
23.7 |
22 |
11 |
50 |
20 |
| PL14-04 |
14 |
23 |
R 1/2 |
41 |
31.4 |
12 |
23.7 |
22 |
12 |
60 |
20 |
| PL16-03 |
16 |
25.5 |
R 3/8 |
42.8 |
32.8 |
11 |
24.1 |
24 |
10 |
69 |
20 |
| PL16-04 |
16 |
25.5 |
R 1/2 |
45.8 |
32.8 |
14 |
24.1 |
24 |
13 |
77 |
20 |

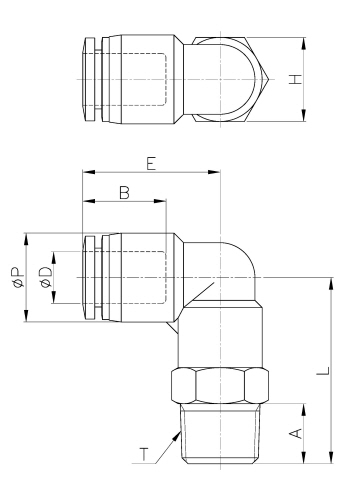

外形尺寸
