PMF04-01,PMF06-01,PMF08-01,PMF10-01,PMF12-02,PMF04-02,PMF06-02,快插式管接头
2016-04-23 12:35354
信息概况
  • 价格：未填
  • 型号：PMF04-01,PMF06-01,PMF08-01,PMF10-01,PMF12-02,PMF04-02,PMF06-02,
  • 发货：3天内
发送询价
PMF04-01,PMF06-01,PMF08-01,PMF10-01,PMF12-02,PMF04-02,PMF06-02,快插式管接头
PMF04-03,PMF06-03,PMF08-02,PMF08-03,PMF08-04,PMF10-02,PMF10-03,PMF10-04,
PMF12-03,PMF12-04,
Model ￠D ￠P T1 T2 L E A1 A2 B H1(Hex) H2(Hex) ORIFICE WEIGHT(g) BOX(EA)
PMF04-01 4 10 R 1/8 M12*1.0p 27.1 4 9 10.6 14.8 14 14 3.5 20 100
PMF04-02 4 10 R 1/4 M12*1.0p 29.1 4 11 10.6 14.8 17 14 3.5 25 100
PMF04-03 4 10 R 3/8 M12*1.0p 30.1 4 12 10.6 14.8 22 14 3.5 38 50
PMF06-01 6 12 R 1/8 M14*1.0p 30.2 4 9 11 16.4 17 17 5 34 100
PMF06-02 6 12 R 1/4 M14*1.0p 30.2 4 11 11 16.4 17 17 5 28 100
PMF06-03 6 12 R 3/8 M14*1.0p 31.2 4 12 11 16.4 22 17 5 43 50
PMF08-01 8 14 R 1/8 M16*1.0p 31.4 5 9 12 18.4 19 19 6 45 50
PMF08-02 8 14 R 1/4 M16*1.0p 31.4 5 11 12 18.4 19 19 6 40 50
PMF08-03 8 14 R 3/8 M16*1.0p 32.4 5 12 12 18.4 22 19 6 46 50
PMF08-04 8 14 R 1/2 M16*1.0p 34.4 5 14 12 18.4 24 19 6 50 25
PMF10-01 10 16.1 R 1/8 M20*1.0p 33.6 5 9 12.7 19.7 24 24 8.5 77 50
PMF10-02 10 16.1 R 1/4 M20*1.0p 33.6 5 11 12.7 19.7 24 24 8.5 71 50
PMF10-03 10 16.1 R 3/8 M20*1.0p 33.6 5 12 12.7 19.7 24 24 8.5 66 25
PMF10-04 10 16.1 R 1/2 M20*1.0p 35.6 5 14 12.7 19.7 24 24 8.5 58 25
PMF12-02 12 19 R 1/4 M22*1.0p 38.3 5 11 17.1 21.9 24 26 10 85 25
PMF12-03 12 19 R 3/8 M22*1.0p 38.3 5 12 17.1 21.9 24 26 10 76 25
PMF12-04 12 19 R 1/2 M22*1.0p 40.3 5 14 17.1 21.9 24 26 10 70 25

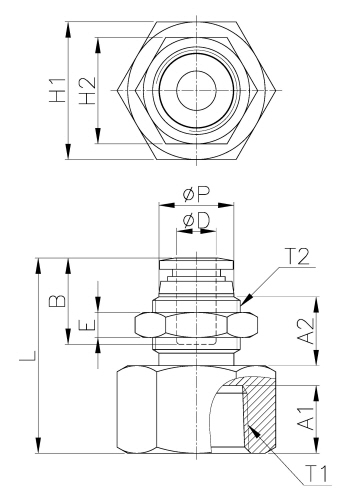

外形尺寸
