PCF04-M5,PCF06-M5,PCF08-01,PCF10-01,PCF12-02,PCF04-01,快插式管接头
2016-04-23 12:30412
信息概况
  • 价格：未填
  • 型号：PCF04-M5,PCF06-M5,PCF08-01,PCF10-01,PCF12-02,PCF04-01,
  • 发货：3天内
发送询价
PCF04-M5,PCF06-M5,PCF08-01,PCF10-01,PCF12-02,PCF04-01,快插式管接头
PCF04-02,PCF04-03,PCF06-01,PCF06-02,PCF06-03,PCF06-04,PCF08-02,PCF08-03,

PCF08-04,PCF10-02,PCF10-03,PCF10-04,PCF12-03,PCF12-04,

Model ∅D ∅P T L A B H(Hex) ORIFICE WEIGHT(g) BOX(EA)
PCF04-M5 4 10 M5*0.8p 26 7 14.8 12 3.5 16 100
PCF04-01 4 10 Rc 1/8 27.1 9 14.8 14 3.5 17 100
PCF04-02 4 10 Rc 1/4 29.1 11 14.8 17 3.5 22 100
PCF04-03 4 10 Rc 3/8 30.1 12 14.8 22 3.5 38 50
PCF06-M5 6 12 M5*0.8p 26.7 7 16.4 12 4.2 20 100
PCF06-01 6 12 Rc 1/8 28.2 9 16.4 14 5 18 100
PCF06-02 6 12 Rc 1/4 30.2 11 16.4 17 5 24 100
PCF06-03 6 12 Rc 3/8 31.2 12 16.4 22 5 38 50
PCF06-04 6 12 Rc 1/2 32.2 14 16.4 24 5 41 50
PCF08-01 8 14 Rc 1/8 29.4 9 18.4 14 6 19 100
PCF08-02 8 14 Rc 1/4 31.4 11 18.4 17 6 24 100
PCF08-03 8 14 Rc 3/8 32.4 12 18.4 22 6 39 50
PCF08-04 8 14 Rc 1/2 34.4 14 18.4 24 6 41 50
PCF10-01 10 16.4 Rc 1/8 32.6 9 19.7 17 8.5 31 100
PCF10-02 10 16.4 Rc 1/4 32.6 11 19.7 17 8.5 26 100
PCF10-03 10 16.4 Rc 3/8 33.6 12 19.7 22 8.5 41 50
PCF10-04 10 16.4 Rc 1/2 35.6 14 19.7 24 8.5 43 50
PCF12-02 12 19 Rc 1/4 37.1 11 21.9 22 10 54 50
PCF12-03 12 19 Rc 3/8 37.1 12 21.9 22 10 46 50
PCF12-04 12 19 Rc 1/2 39.1 14 21.9 24 10 50 25

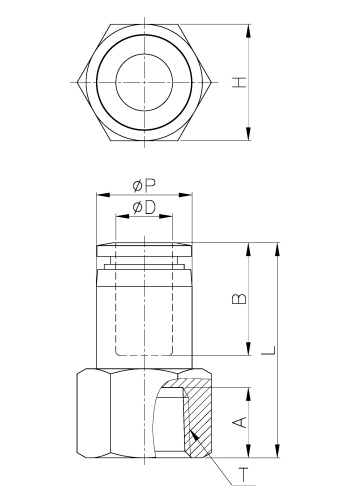

外形尺寸
