PST04-G01,PST06-G01,PST08-G01,PST10-G01,PST12-G02,快插式管接头
PST04-G02，PST04-G03,PST06-G02,PST06-G03,PST08-G02,PST08-G03,PST08-G04,
PST10-G02,PST10-G03,PST10-G04,PST12-G03,PST12-G04,
| Model |
∅D |
∅P |
T |
L1 |
L2 |
E |
A |
B |
H(Hex) |
ORIFICE |
WEIGHT(g) |
EA(BOX) |
| PST04-G01 |
4 |
10.6 |
G 1/8 |
22.5 |
42 |
19.5 |
5 |
14.8 |
14 |
3 |
14 |
100 |
| PST04-G02 |
4 |
10.6 |
G 1/4 |
24.5 |
44 |
19.5 |
6.5 |
14.8 |
17 |
3 |
18 |
100 |
| PST04-G03 |
4 |
10.6 |
G 3/8 |
24 |
43.5 |
19.5 |
6.5 |
14.8 |
20 |
3 |
24 |
50 |
| PST06-G01 |
6 |
13 |
G 1/8 |
24 |
45.4 |
21.4 |
5 |
16.4 |
14 |
4 |
18 |
50 |
| PST06-G02 |
6 |
13 |
G 1/4 |
26 |
47.4 |
21.4 |
6.5 |
16.4 |
17 |
4 |
23 |
50 |
| PST06-G03 |
6 |
13 |
G 3/8 |
25.5 |
46.9 |
21.4 |
6.5 |
16.4 |
20 |
4 |
27 |
50 |
| PST08-G01 |
8 |
15 |
G 1/8 |
25.8 |
49.1 |
23.4 |
5 |
18.3 |
14 |
6 |
20 |
50 |
| PST08-G02 |
8 |
15 |
G 1/4 |
27.8 |
51.1 |
23.4 |
6.5 |
18.3 |
17 |
6 |
26 |
50 |
| PST08-G03 |
8 |
15 |
G 3/8 |
27.3 |
50.6 |
23.4 |
6.5 |
18.3 |
20 |
6 |
28 |
50 |
| PST08-G04 |
8 |
15 |
G 1/2 |
28.8 |
52.1 |
23.4 |
8 |
18.3 |
24 |
6 |
43 |
25 |
| PST10-G01 |
10 |
18 |
G 1/8 |
27 |
52.8 |
25.8 |
5 |
20.2 |
17 |
6 |
31 |
25 |
| PST10-G02 |
10 |
18 |
G 1/4 |
29 |
54.8 |
25.8 |
6.5 |
20.2 |
17 |
8 |
32 |
25 |
| PST10-G03 |
10 |
18 |
G 3/8 |
28.5 |
54.3 |
25.8 |
6.5 |
20.2 |
20 |
8 |
38 |
25 |
| PST10-G04 |
10 |
18 |
G 1/2 |
30 |
55.8 |
25.8 |
8 |
20.2 |
24 |
8 |
52 |
25 |
| PST12-G02 |
12 |
20.8 |
G 1/4 |
30.9 |
61.1 |
30.2 |
6.5 |
22.9 |
19 |
8 |
45 |
25 |
| PST12-G03 |
12 |
20.8 |
G 3/8 |
30.4 |
60.6 |
30.2 |
6.5 |
22.9 |
20 |
10 |
45 |
25 |
| PST12-G04 |
12 |
20.8 |
G 1/2 |
31.9 |
62.1 |
30.2 |
8 |
22.9 |
24 |
10 |
57 |
20 |

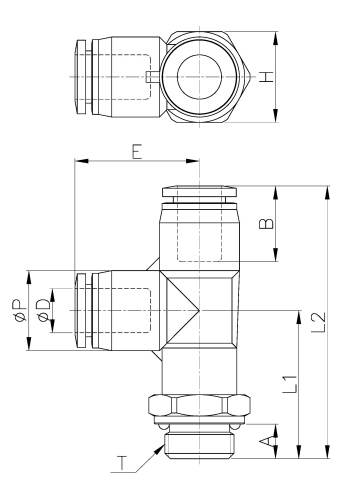

外形尺寸
