PTF04-G01,PTF06-G01,PTF08-G01,PTF10-G01,PTF12-G02,快插式管接头
PTF04-G02,PTF06-G02,PTF06-G03,PTF08-G02,PTF08-G03,PTF08-G04,PTF10-G02,PTF10-G03,
PTF10-G04,PTF12-G03,PTF12-G04,
| Model |
∅D |
∅P |
T |
L |
E |
A |
B |
H(hex) |
ORIFICE |
WEIGHT(g) |
EA(BOX) |
| PTF04-G01 |
4 |
10.5 |
G 1/8 |
22.5 |
18.5 |
9 |
14.8 |
14 |
3 |
16 |
100 |
| PTF04-G02 |
4 |
10.5 |
G 1/4 |
24.5 |
18.5 |
11 |
14.8 |
17 |
3 |
22 |
50 |
| PTF06-G01 |
6 |
12.5 |
G 1/8 |
24.5 |
20.3 |
9 |
16.4 |
14 |
4 |
20 |
50 |
| PTF06-G02 |
6 |
12.5 |
G 1/4 |
26.5 |
20.3 |
11 |
16.4 |
17 |
4 |
24 |
50 |
| PTF06-G03 |
6 |
12.5 |
G 3/8 |
27.5 |
20.3 |
12 |
16.4 |
22 |
4 |
39 |
25 |
| PTF08-G01 |
8 |
15 |
G 1/8 |
26 |
22.6 |
9 |
18.3 |
14 |
6 |
23 |
50 |
| PTF08-G02 |
8 |
15 |
G 1/4 |
28 |
22.6 |
11 |
18.3 |
17 |
6 |
28 |
25 |
| PTF08-G03 |
8 |
15 |
G 3/8 |
29 |
22.6 |
12 |
18.3 |
22 |
6 |
43 |
25 |
| PTF08-G04 |
8 |
15 |
G 1/2 |
31 |
22.6 |
14 |
18.3 |
24 |
6 |
44 |
25 |
| PTF10-G01 |
10 |
17.5 |
G 1/8 |
28.5 |
25.2 |
9 |
20.2 |
17 |
7 |
43 |
25 |
| PTF10-G02 |
10 |
17.5 |
G 1/4 |
28.5 |
25.2 |
11 |
20.2 |
17 |
7 |
35 |
25 |
| PTF10-G03 |
10 |
17.5 |
G 3/8 |
29.5 |
25.2 |
12 |
20.2 |
22 |
7 |
45 |
20 |
| PTF10-G04 |
10 |
17.5 |
G 1/2 |
31.5 |
25.2 |
14 |
20.2 |
24 |
7 |
46 |
20 |
| PTF12-G02 |
12 |
20.5 |
G 1/4 |
31.4 |
28.7 |
11 |
22.9 |
19 |
10 |
50 |
20 |
| PTF12-G03 |
12 |
20.5 |
G 3/8 |
32.4 |
28.7 |
12 |
22.9 |
22 |
10 |
58 |
20 |
| PTF12-G04 |
12 |
20.5 |
G 1/2 |
34.4 |
28.7 |
14 |
22.9 |
24 |
10 |
58 |
15 |

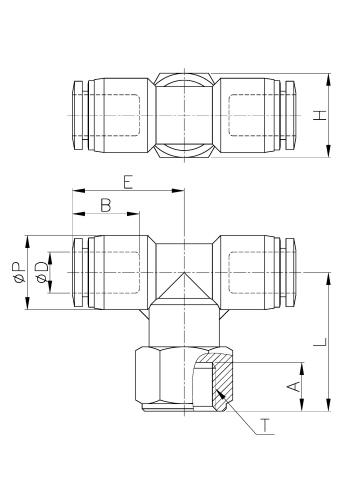

外形尺寸
