PMF04-G01,PMF06-G01,PMF08-G01,PMF10-G02,PMF12-G02,PMF04-G02,PMF04-G03,快插式管接头
PMF06-G02,PMF06-G03,PMF08-G02,PMF08-G03,PMF10-G03,PMF10-G04,PMF12-G03,PMF12-G04,

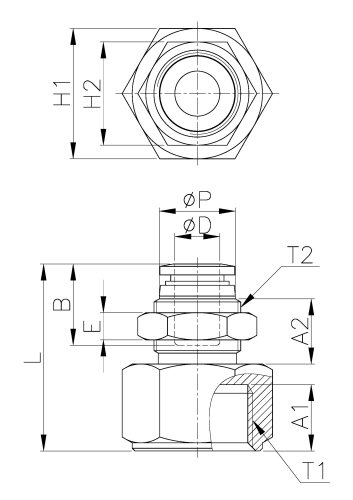

| Model |
∅D |
∅P |
T1 |
T2 |
L |
E |
A1 |
A2 |
B |
H1(Hex) |
H2(Hex) |
ORIFICE |
WEIGHT(g) |
EA(BOX) |
| PMF04-G01 |
4 |
10 |
G 1/8 |
M12*1.0p |
27.1 |
4 |
9 |
10.6 |
14.8 |
14 |
14 |
3.5 |
20 |
100 |
| PMF04-G02 |
4 |
10 |
G 1/4 |
M12*1.0p |
29.1 |
4 |
11 |
10.6 |
14.8 |
17 |
14 |
3.5 |
25 |
100 |
| PMF04-G03 |
4 |
10 |
G 3/8 |
M12*1.0p |
30.1 |
4 |
12 |
10.6 |
14.8 |
22 |
14 |
3.5 |
37 |
50 |
| PMF06-G01 |
6 |
12 |
G 1/8 |
M14*1.0p |
30.2 |
4 |
9 |
11 |
16.4 |
17 |
17 |
5 |
32 |
100 |
| PMF06-G02 |
6 |
12 |
G 1/4 |
M14*1.0p |
30.2 |
4 |
11 |
11 |
16.4 |
17 |
17 |
5 |
28 |
100 |
| PMF06-G03 |
6 |
12 |
G 3/8 |
M14*1.0p |
31.2 |
4 |
12 |
11 |
16.4 |
22 |
17 |
5 |
43 |
50 |
| PMF08-G01 |
8 |
14 |
G 1/8 |
M16*1.0p |
31.4 |
5 |
9 |
12 |
18.4 |
19 |
19 |
6 |
44 |
50 |
| PMF08-G02 |
8 |
14 |
G 1/4 |
M16*1.0p |
31.4 |
5 |
11 |
12 |
18.4 |
19 |
19 |
6 |
37 |
50 |
| PMF08-G03 |
8 |
14 |
G 3/8 |
M16*1.0p |
32.4 |
5 |
12 |
12 |
18.4 |
22 |
19 |
6 |
45 |
50 |
| PMF10-G02 |
10 |
16.1 |
G 1/4 |
M20*1.0p |
33.6 |
5 |
11 |
12.7 |
19.7 |
24 |
24 |
8.5 |
70 |
50 |
| PMF10-G03 |
10 |
16.1 |
G 3/8 |
M20*1.0p |
33.6 |
5 |
12 |
12.7 |
19.7 |
24 |
24 |
8.5 |
62 |
25 |
| PMF10-G04 |
10 |
16.1 |
G 1/2 |
M20*1.0p |
35.6 |
5 |
14 |
12.7 |
19.7 |
24 |
24 |
8.5 |
53 |
25 |
| PMF12-G02 |
12 |
19 |
G 1/4 |
M22*1.0p |
38.3 |
5 |
11 |
17.1 |
21.9 |
24 |
26 |
10 |
84 |
25 |
| PMF12-G03 |
12 |
19 |
G 3/8 |
M22*1.0p |
38.3 |
5 |
12 |
17.1 |
21.9 |
24 |
26 |
10 |
74 |
25 |
| PMF12-G04 |
12 |
19 |
G 1/2 |
M22*1.0p |
40.3 |
5 |
14 |
17.1 |
21.9 |
24 |
26 |
10 |
67 |
25 |
外形尺寸
