PAT04-G01(3),PAT06-G01(3),PAT08-G01(3),PAT10-G01(3),PAT12-G02(3),快插式管接头

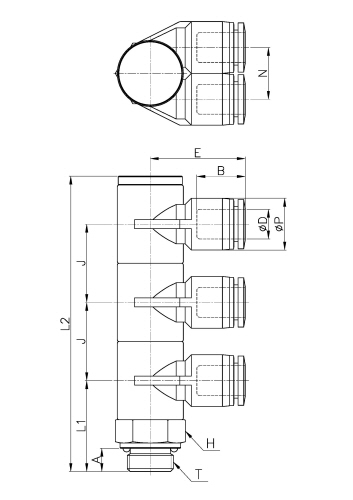

外形尺寸
| Model |
∅D |
∅P |
T |
L1 |
L2 |
N |
E |
A |
B |
J |
H(Hex) |
ORIFICE |
WEIGHT(g) |
EA(BOX) |
| PAT04-G01(3) |
4 |
10.5 |
G 1/8 |
20.5 |
67.7 |
10.5 |
21.4 |
5 |
14.8 |
17.9 |
14 |
3.2 |
53 |
20 |
| PAT04-G02(3) |
4 |
10.5 |
G 1/4 |
25.5 |
82.7 |
10.5 |
22.9 |
6.5 |
14.8 |
21.9 |
17 |
3.2 |
80 |
20 |
| PAT04-G03(3) |
4 |
10.5 |
G 3/8 |
26 |
83.7 |
10.5 |
26.1 |
6.5 |
14.8 |
21.9 |
21 |
3.2 |
122 |
12 |
| PAT04-G04(3) |
4 |
10.5 |
G 1/2 |
29.6 |
92.8 |
10.5 |
27.7 |
8 |
14.8 |
23.9 |
24 |
3.2 |
187 |
8 |
| PAT06-G01(3) |
6 |
12.5 |
G 1/8 |
20.5 |
67.7 |
12.5 |
22.9 |
5 |
16.4 |
17.9 |
14 |
4 |
64 |
12 |
| PAT06-G02(3) |
6 |
12.5 |
G 1/4 |
25.5 |
82.7 |
12.5 |
24.8 |
6.5 |
16.4 |
21.9 |
17 |
5 |
86 |
9 |
| PAT06-G03(3) |
6 |
12.5 |
G 3/8 |
26 |
83.7 |
12.5 |
26.6 |
6.5 |
16.4 |
21.9 |
21 |
5 |
126 |
9 |
| PAT06-G04(3) |
6 |
12.5 |
G 1/2 |
29.6 |
92.8 |
12.5 |
28.6 |
8 |
16.4 |
23.9 |
24 |
5 |
181 |
6 |
| PAT08-G01(3) |
8 |
14.5 |
G 1/8 |
20.5 |
67.7 |
14.5 |
24.8 |
5 |
18.3 |
17.9 |
14 |
5 |
64 |
9 |
| PAT08-G02(3) |
8 |
14.5 |
G 1/4 |
25.5 |
82.7 |
14.5 |
26.6 |
6.5 |
18.3 |
21.9 |
17 |
6 |
92 |
9 |
| PAT08-G03(3) |
8 |
14.5 |
G 3/8 |
26 |
83.7 |
14.5 |
28.2 |
6.5 |
18.3 |
21.9 |
21 |
7 |
135 |
6 |
| PAT08-G04(3) |
8 |
14.5 |
G 1/2 |
29.6 |
92.8 |
14.5 |
30.3 |
8 |
18.3 |
23.9 |
24 |
6 |
200 |
6 |
| PAT10-G01(3) |
10 |
17.5 |
G 1/8 |
20.5 |
67.7 |
17.5 |
26.7 |
5 |
20.2 |
17.9 |
14 |
5 |
80 |
8 |
| PAT10-G02(3) |
10 |
17.5 |
G 1/4 |
25.5 |
82.7 |
17.5 |
28.2 |
6.5 |
20.2 |
21.9 |
17 |
8 |
106 |
8 |
| PAT10-G03(3) |
10 |
17.5 |
G 3/8 |
26 |
83.7 |
17.5 |
30.2 |
6.5 |
20.2 |
21.9 |
21 |
6 |
144 |
6 |
| PAT10-G04(3) |
10 |
17.5 |
G 1/2 |
29.6 |
92.8 |
17.5 |
32.6 |
8 |
20.2 |
23.9 |
24 |
7 |
213 |
6 |
| PAT12-G02(3) |
12 |
20.5 |
G 1/4 |
25.5 |
82.7 |
20.5 |
31.1 |
6.5 |
22.9 |
21.9 |
17 |
8 |
123 |
6 |
| PAT12-G03(3) |
12 |
20.5 |
G 3/8 |
26 |
83.7 |
20.5 |
32.9 |
6.5 |
22.9 |
21.9 |
21 |
8 |
165 |
4 |
| PAT12-G04(3) |
12 |
20.5 |
G 1/2 |
29.6 |
92.8 |
20.5 |
35.2 |
8 |
22.9 |
23.9 |
24 |
8 |
220 |
4 |
PAT04-G02(3),PAT04-G03(3),PAT04-G04(3),PAT06-G02(3),PAT06-G03(3),PAT06-G04(3),PAT08-G02(3),
PAT08-G03(3),PAT08-G04(3),PAT10-G02(3),PAT10-G03(3),PAT10-G04(3),PAT12-G03(3),PAT12-G04(3),
