PAT04-G01(2),PAT06-G01(2),PAT08-G01(2),PAT10-G01(2),PAT12-G02(2),快插式管接头

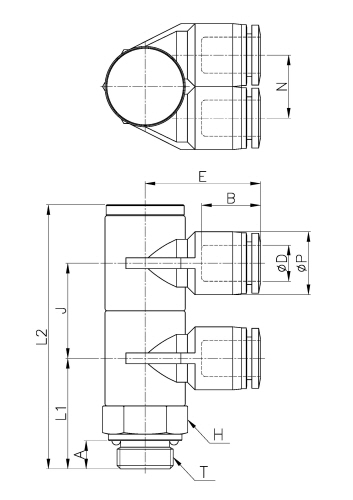

外形尺寸
| Model |
∅D |
∅P |
T |
L1 |
L2 |
N |
E |
A |
B |
J |
H(Hex) |
ORIFICE |
WEIGHT(g) |
EA(BOX) |
| PAT04-G01(2) |
4 |
10.5 |
G 1/8 |
20.5 |
49.8 |
10.5 |
21.4 |
5 |
14.8 |
17.9 |
14 |
3.2 |
40 |
25 |
| PAT04-G02(2) |
4 |
10.5 |
G 1/4 |
25.5 |
60.8 |
10.5 |
22.9 |
6.5 |
14.8 |
21.9 |
17 |
3.2 |
62 |
25 |
| PAT04-G03(2) |
4 |
10.5 |
G 3/8 |
26 |
61.8 |
10.5 |
26.1 |
6.5 |
14.8 |
21.9 |
21 |
3.2 |
95 |
16 |
| PAT04-G04(2) |
4 |
10.5 |
G 1/2 |
29.6 |
68.9 |
10.5 |
27.7 |
8 |
14.8 |
23.9 |
24 |
3.2 |
139 |
12 |
| PAT06-G01(2) |
6 |
12.5 |
G 1/8 |
20.5 |
49.8 |
12.5 |
22.9 |
5 |
16.4 |
17.9 |
14 |
4 |
43 |
25 |
| PAT06-G02(2) |
6 |
12.5 |
G 1/4 |
25.5 |
60.8 |
12.5 |
24.8 |
6.5 |
16.4 |
21.9 |
17 |
5 |
53 |
12 |
| PAT06-G03(2) |
6 |
12.5 |
G 3/8 |
26 |
61.8 |
12.5 |
26.6 |
6.5 |
16.4 |
21.9 |
21 |
5 |
97 |
12 |
| PAT06-G04(2) |
6 |
12.5 |
G 1/2 |
29.6 |
68.9 |
12.5 |
28.6 |
8 |
16.4 |
23.9 |
24 |
5 |
141 |
9 |
| PAT08-G01(2) |
8 |
14.5 |
G 1/8 |
20.5 |
49.8 |
14.5 |
24.8 |
5 |
18.3 |
17.9 |
14 |
5 |
48 |
16 |
| PAT08-G02(2) |
8 |
14.5 |
G 1/4 |
25.5 |
60.8 |
14.5 |
26.6 |
6.5 |
18.3 |
21.9 |
17 |
6 |
70 |
12 |
| PAT08-G03(2) |
8 |
14.5 |
G 3/8 |
26 |
61.8 |
14.5 |
28.2 |
6.5 |
18.3 |
21.9 |
21 |
7 |
103 |
9 |
| PAT08-G04(2) |
8 |
14.5 |
G 1/2 |
29.6 |
68.9 |
14.5 |
30.3 |
8 |
18.3 |
23.9 |
24 |
6 |
146 |
9 |
| PAT10-G01(2) |
10 |
17.5 |
G 1/8 |
20.5 |
49.8 |
17.5 |
26.7 |
5 |
20.2 |
17.9 |
14 |
5 |
68 |
12 |
| PAT10-G02(2) |
10 |
17.5 |
G 1/4 |
25.5 |
60.8 |
17.5 |
28.2 |
6.5 |
20.2 |
21.9 |
17 |
8 |
78 |
9 |
| PAT10-G03(2) |
10 |
17.5 |
G 3/8 |
26 |
61.8 |
17.5 |
30.2 |
6.5 |
20.2 |
21.9 |
21 |
6 |
110 |
9 |
| PAT10-G04(2) |
10 |
17.5 |
G 1/2 |
29.6 |
68.9 |
17.5 |
32.6 |
8 |
20.2 |
23.9 |
24 |
7 |
154 |
6 |
| PAT12-G02(2) |
12 |
20.5 |
G 1/4 |
25.5 |
60.8 |
20.5 |
31.1 |
6.5 |
22.9 |
21.9 |
17 |
8 |
91 |
9 |
| PAT12-G03(2) |
12 |
20.5 |
G 3/8 |
26 |
61.8 |
20.5 |
32.9 |
6.5 |
22.9 |
21.9 |
21 |
8 |
122 |
6 |
| PAT12-G04(2) |
12 |
20.5 |
G 1/2 |
29.6 |
68.9 |
20.5 |
35.2 |
8 |
22.9 |
23.9 |
24 |
8 |
167 |
4 |
PAT04-G02(2),PAT04-G03(2),PAT04-G04(2),PAT06-G02(2),PAT06-G03(2),PAT06-G04(2),PAT08-G02(2),
PAT08-G03(2),PAT08-G04(2),PAT10-G02(2),PAT10-G03(2),PAT10-G04(2),PAT12-G03(2),PAT12-G04(2),
