调速阀
首页 > 了解产品 > 液压元件 液压阀 > 流量控制阀 > 调速阀
NSC03-M5(DC),NSC04-M5(DC),NSC06-M5(DC),NSC08-01(DC),NSC10-01(DC),NSC12-02(DC),调速阀
2016-04-11 21:13560
信息概况
  • 价格：未填
  • 型号：NSC03-M5(DC),NSC04-M5(DC),NSC06-M5(DC),NSC08-01(DC),NSC10-01(DC),NSC12-02(DC)
  • 发货：3天内
发送询价
 NSC03-M5(DC),NSC04-M5(DC),NSC06-M5(DC),NSC08-01(DC),NSC10-01(DC),NSC12-02(DC),调速阀
Model ￠D ￠P T L1 L2 E1 E2 A B H(Hex) WEIGHT(g) BOX(EA)
NSC03-M5(DC) 3 7.8 M5*0.8p 9.6 23.2 16.5 5 3.6 11.3 8 6 50
NSC04-M5(DC) 4 10.5 M5*0.8p 10.3 23.2 20.2 5 3.6 14.8 8 7 50
NSC04-01(DC) 4 10.5 R 1/8 15.1 31.5 23.3 7 8.2 15.3 11 16 50
NSC04-02(DC) 4 10.5 R 1/4 18.4 37 25.3 9 11 15.3 15 35 50
NSC06-M5(DC) 6 12.5 M5*0.8p 11.4 23.2 22.7 5 3.6 16.4 8 9 50
NSC06-01(DC) 6 12.5 R 1/8 15.1 31.5 24.2 7 8.2 16.4 11 18 50
NSC06-02(DC) 6 12.5 R 1/4 18.4 37 26.2 9 11 16.4 15 33 50
NSC06-03(DC) 6 12.5 R 3/8 21.9 43.3 27.7 11 12.2 16.4 19 63 25
NSC06-04(DC) 6 12.5 R 1/2 26.5 50.2 30.8 14 16.5 16.4 24 108 20
NSC08-01(DC) 8 14.5 R 1/8 16.2 31.5 25.9 7 8.2 18.3 11 20 50
NSC08-02(DC) 8 14.5 R 1/4 19.2 37 27.9 9 11 18.3 15 34 50
NSC08-03(DC) 8 14.5 R 3/8 21.9 43.3 28.9 11 12.2 18.3 19 64 25
NSC08-04(DC) 8 14.5 R 1/2 26.5 50.2 31.8 14 16.5 18.3 24 100 20
NSC10-01(DC) 10 17.5 R 1/8 17.7 31.5 27.9 7 8.2 19.7 11 26 25
NSC10-02(DC) 10 17.5 R 1/4 20.7 37 29.9 9 11 19.7 15 38 25
NSC10-03(DC) 10 17.5 R 3/8 23.2 43.3 31 11.2 12.2 19.7 19 63 25
NSC10-04(DC) 10 17.5 R 1/2 26.5 50.2 33.4 14 16.5 19.7 24 103 20
NSC12-02(DC) 12 20.5 R 1/4 22.2 37 33.3 9 11 22.4 15 42 25
NSC12-03(DC) 12 20.5 R 3/8 24 43.3 33.7 11.5 12.2 21.9 19 65 25
NSC12-04(DC) 12 20.5 R 1/2 28 50.2 36.1 14 16.5 21.9 24 104 20

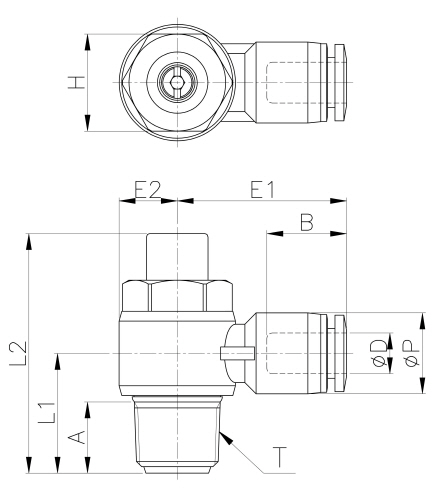

外形尺寸

NSC04-01(DC),NSC04-02(DC),NSC06-01(DC),NSC06-02(DC),NSC06-03(DC),NSC06-04(DC),NSC08-02(DC),
NSC08-03(DC),NSC08-04(DC),NSC10-02(DC),NSC10-03(DC),NSC10-04(DC),NSC12-03(DC),NSC12-04(DC),
