SPL04-M5,SPL06-M5,SPL08-01,SPL10-02,SPL12-03,SPL04-M6,SPL06-01,截止阀
SPL04-01,SPL06-02,SPL08-02,SPL08-03,SPL10-03,SPL10-04,SPL12-04,
| Model |
∅D |
∅P |
T |
L |
E |
A |
B |
H(Hex) |
WEIGHT(g) |
BOX(EA) |
| SPL04-M5 |
4 |
10 |
M5*0.8p |
20.5 |
29.5 |
4 |
14.8 |
10 |
13 |
100 |
| SPL04-M6 |
4 |
10 |
M6*1.0p |
20.6 |
29.5 |
4.1 |
14.8 |
10 |
14 |
100 |
| SPL04-01 |
4 |
10 |
R 1/8 |
24.5 |
29.5 |
8 |
14.8 |
10 |
15 |
50 |
| SPL06-M5 |
6 |
12 |
M5*0.8p |
22.5 |
32.8 |
4 |
16.4 |
12 |
19 |
100 |
| SPL06-01 |
6 |
12 |
R 1/8 |
26.5 |
32.8 |
8 |
16.4 |
12 |
22 |
50 |
| SPL06-02 |
6 |
12 |
R 1/4 |
29.5 |
32.8 |
10 |
16.4 |
14 |
27 |
50 |
| SPL08-01 |
8 |
14 |
R 1/8 |
28 |
42.9 |
8 |
18.4 |
14 |
32 |
50 |
| SPL08-02 |
8 |
14 |
R 1/4 |
31 |
42.9 |
10 |
18.4 |
14 |
38 |
50 |
| SPL08-03 |
8 |
14 |
R 3/8 |
32 |
42.9 |
11 |
18.4 |
17 |
44 |
50 |
| SPL10-02 |
10 |
17 |
R 1/4 |
31.5 |
49 |
10 |
20.2 |
17 |
57 |
25 |
| SPL10-03 |
10 |
17 |
R 3/8 |
32.5 |
49 |
11 |
20.2 |
17 |
64 |
25 |
| SPL10-04 |
10 |
17 |
R 1/2 |
35.5 |
49 |
14 |
20.2 |
21 |
80 |
25 |
| SPL12-03 |
12 |
19 |
R 3/8 |
35.4 |
57.5 |
11 |
22.4 |
19 |
78 |
25 |
| SPL12-04 |
12 |
19 |
R 1/2 |
38.4 |
57.5 |
14 |
22.4 |
21 |
91 |
25 |

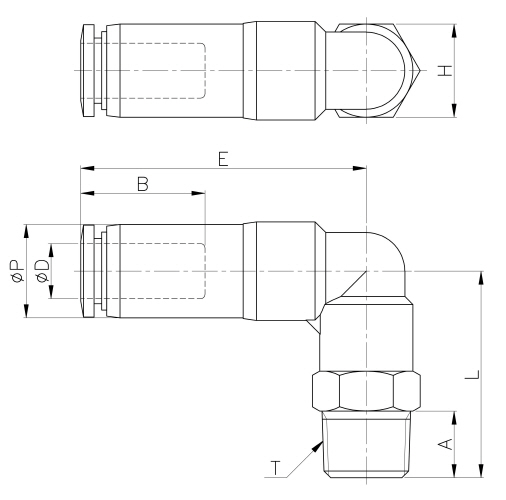

外形尺寸
